Navigation Information Display Bezel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

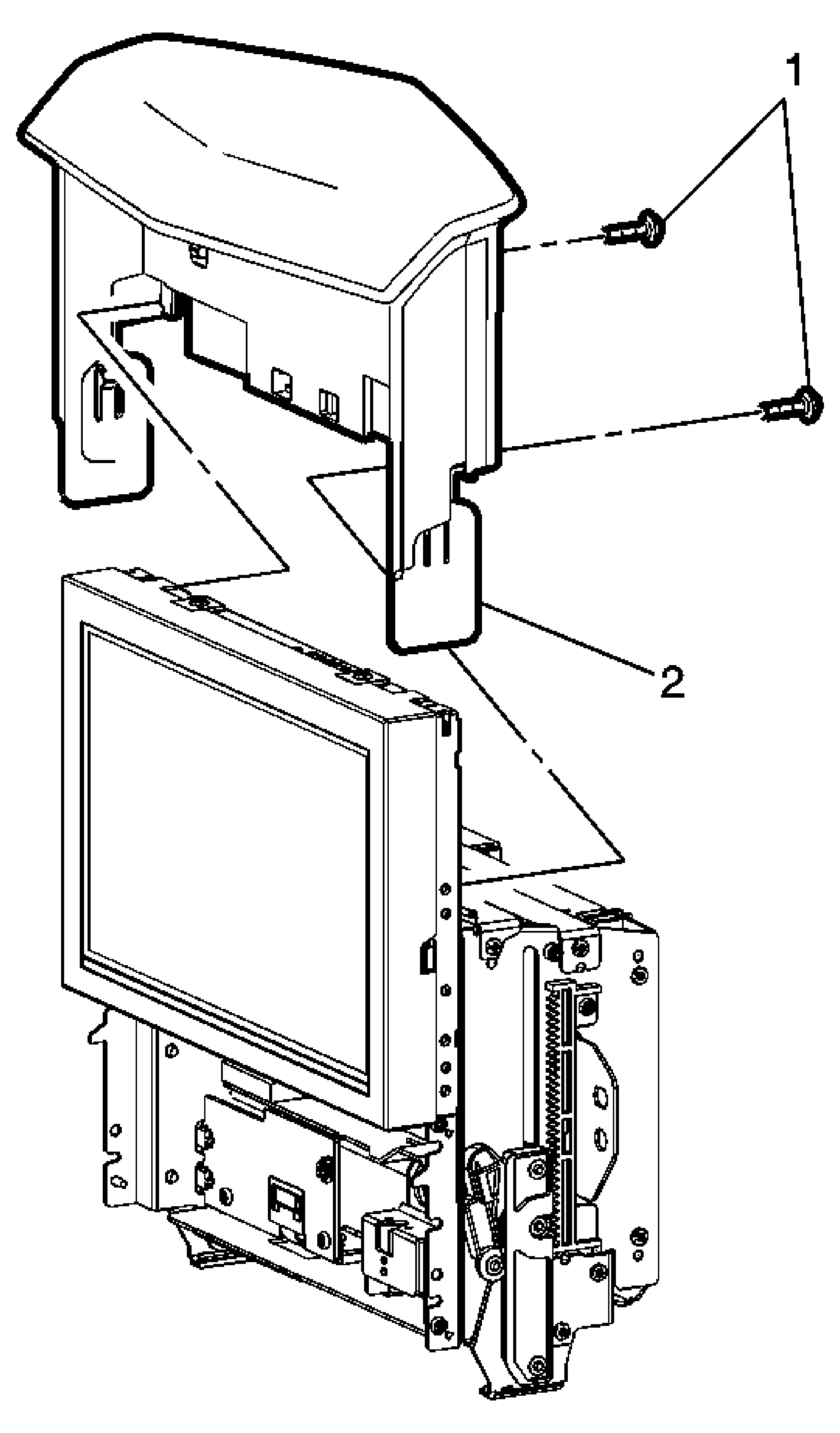

Fig 1: Identifying Navigation Information Display Bezel
GM2397517Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1 Navigation Information Display Bezel Screws (Qty: 2)

Tighten:  2.5 N.m (22 lb in)
2 Navigation Information Display Bezel
Procedure:
Slide a flat-bladed plastic trim tool between the information display screen and the navigation information display bezel along each side and release the bezel from the assembly.
