Seatback Display System Components
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
The Seatback display system includes:
- Two video display screens
- Infrared Module (located only in the left screen)
- Driver side transmits and receives
- Passenger side only receives
- Two sets of wireless infrared headphones
- A remote control
- Local video input for each Seatback display for playing a video auxiliary device on the Seatback display.

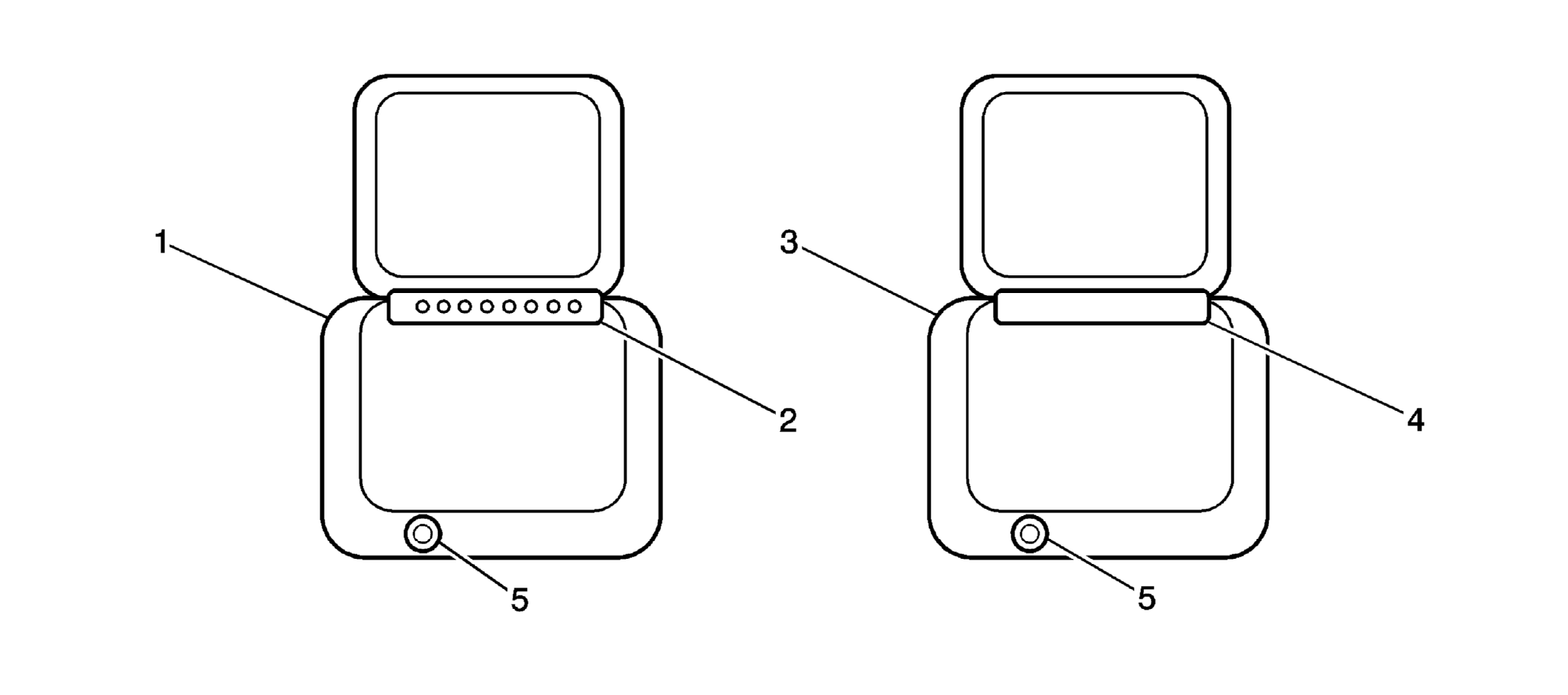

| Callout | Component Name |
|---|---|
| 1 | Left Driver Seatback Display |
| 2 | Left IR-Dimly Illuminates 8 LEDs, Transmits Audio And Receives Remote Signal |
| 3 | Right Passenger Seatback Display |
| 4 | Right IR-LEDS Do Not Illuminate, Receives Remote Signal Only |
| 5 | Local video input |
