Radiator Inlet Hose Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

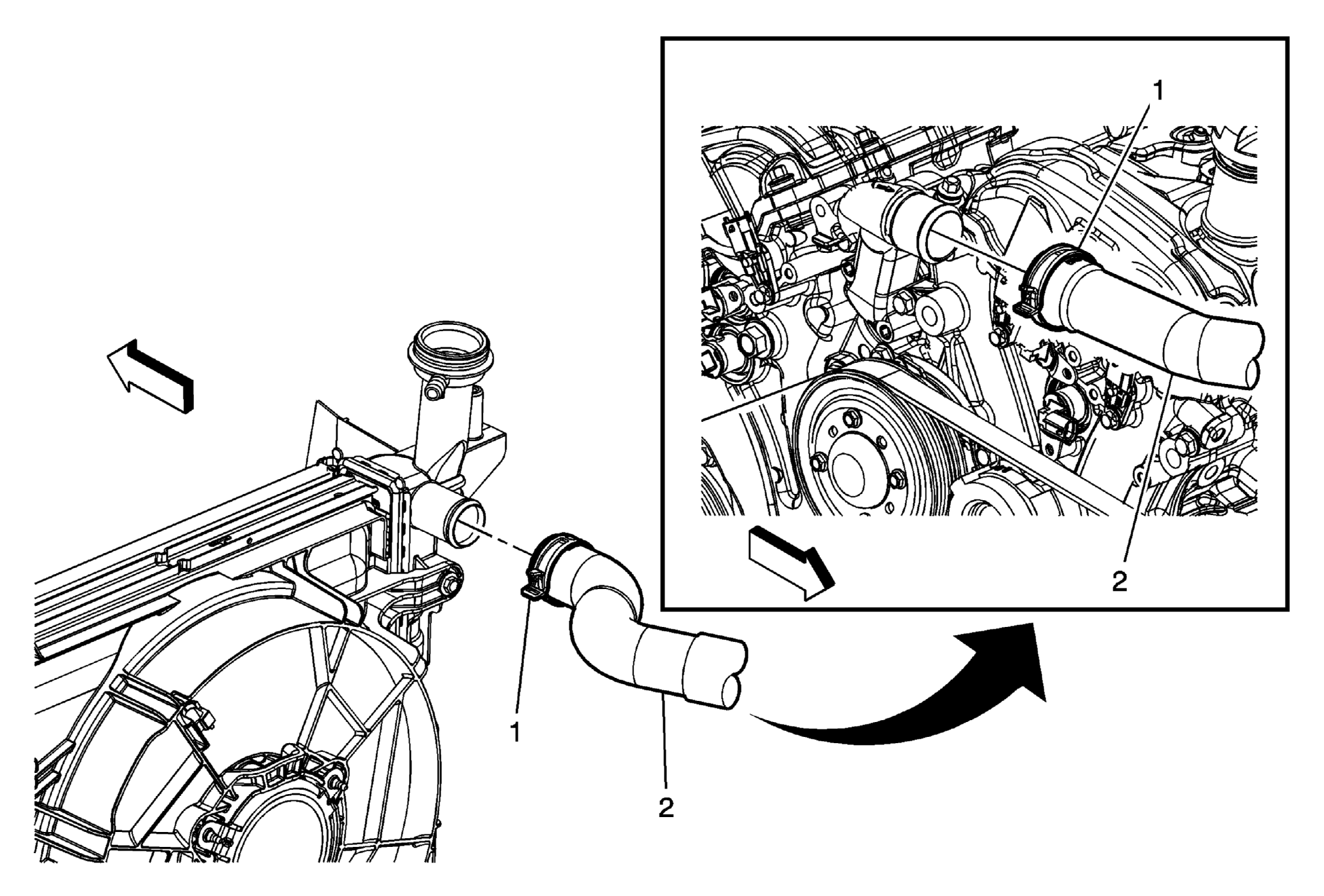

Fig 1: Radiator Inlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac N Fill) . Remove the front compartment sight shield. Refer to Front Compartment Front Sight Shield Replacement (Enclave) , Front Compartment Front Sight Shield Replacement (Traverse) or Front Compartment Front Sight Shield Replacement (Acadia) .
1	Radiator Inlet Hose Clamp (Qty: 2) Procedure Using J 38185 hose clamp pliers reposition the radiator inlet hose clamps. Special Tools J 38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedures

Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac N Fill) .
Remove the front compartment sight shield. Refer to Front Compartment Front Sight Shield Replacement (Enclave) , Front Compartment Front Sight Shield Replacement (Traverse) or Front Compartment Front Sight Shield Replacement (Acadia) .

Radiator Inlet Hose Clamp (Qty: 2)
Procedure
Using J 38185 hose clamp pliers reposition the radiator inlet hose clamps.
Special Tools
J 38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Inlet Hose
