Radiator Air Side Baffle And Deflector Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

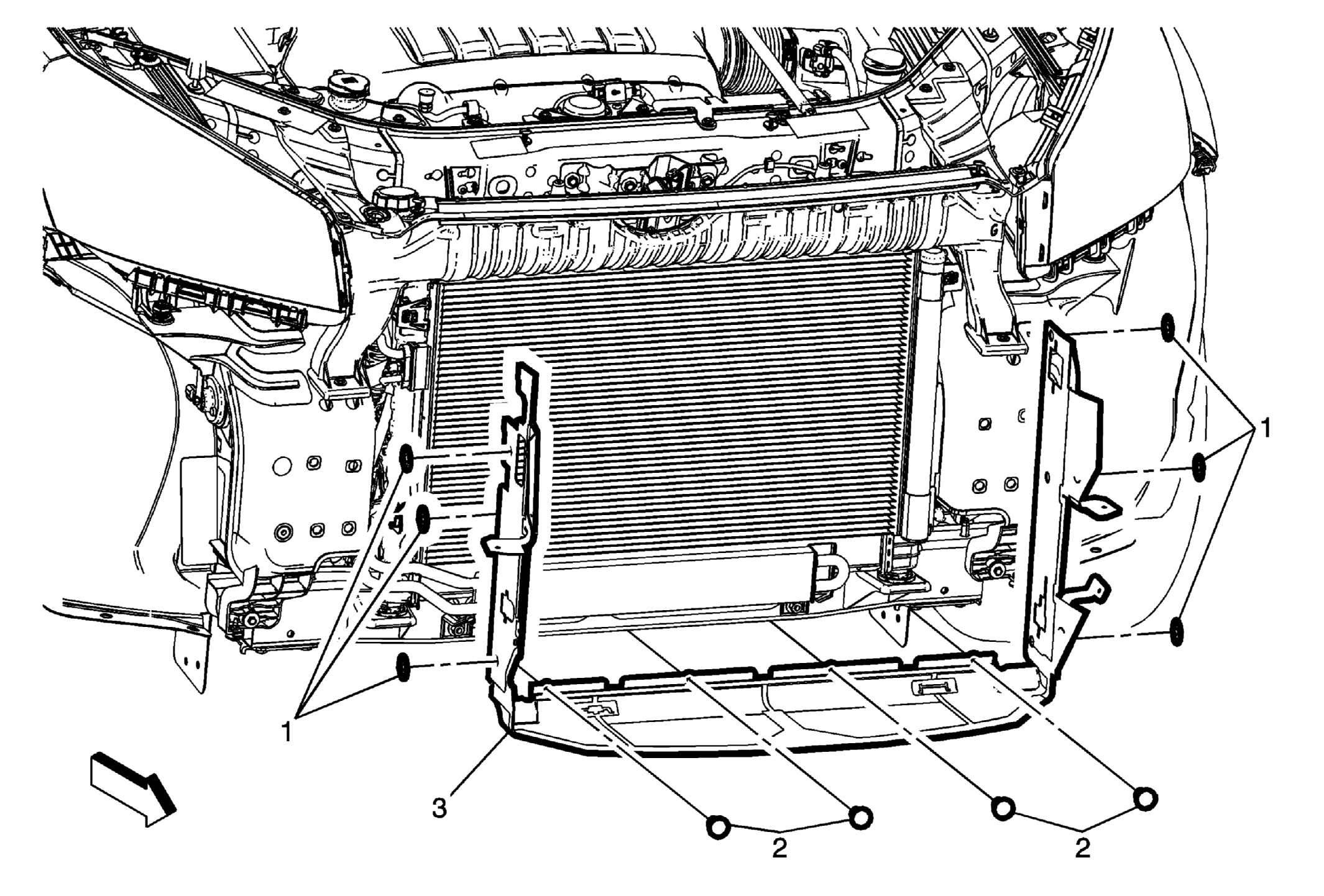

Fig 1: Radiator Air Side Baffle And Deflector

Courtesy of GENERAL MOTORS COMPANY

Radiator Air Side Baffle and Deflector Replacement

Callout	Component Name
Preliminary Procedure Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (Acadia) . Reposition the power steering fluid cooler without disconnecting the lines. Refer to Power Steering Fluid Cooler Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 6)
2	Radiator Air Side Baffle and Deflector Retainer (Qty: 4)
3	Radiator Air Side Baffle and Deflector Procedure Pull the sides of the radiator air side baffle and deflector away from the radiator and lower to remove.
