Installation Procedure

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

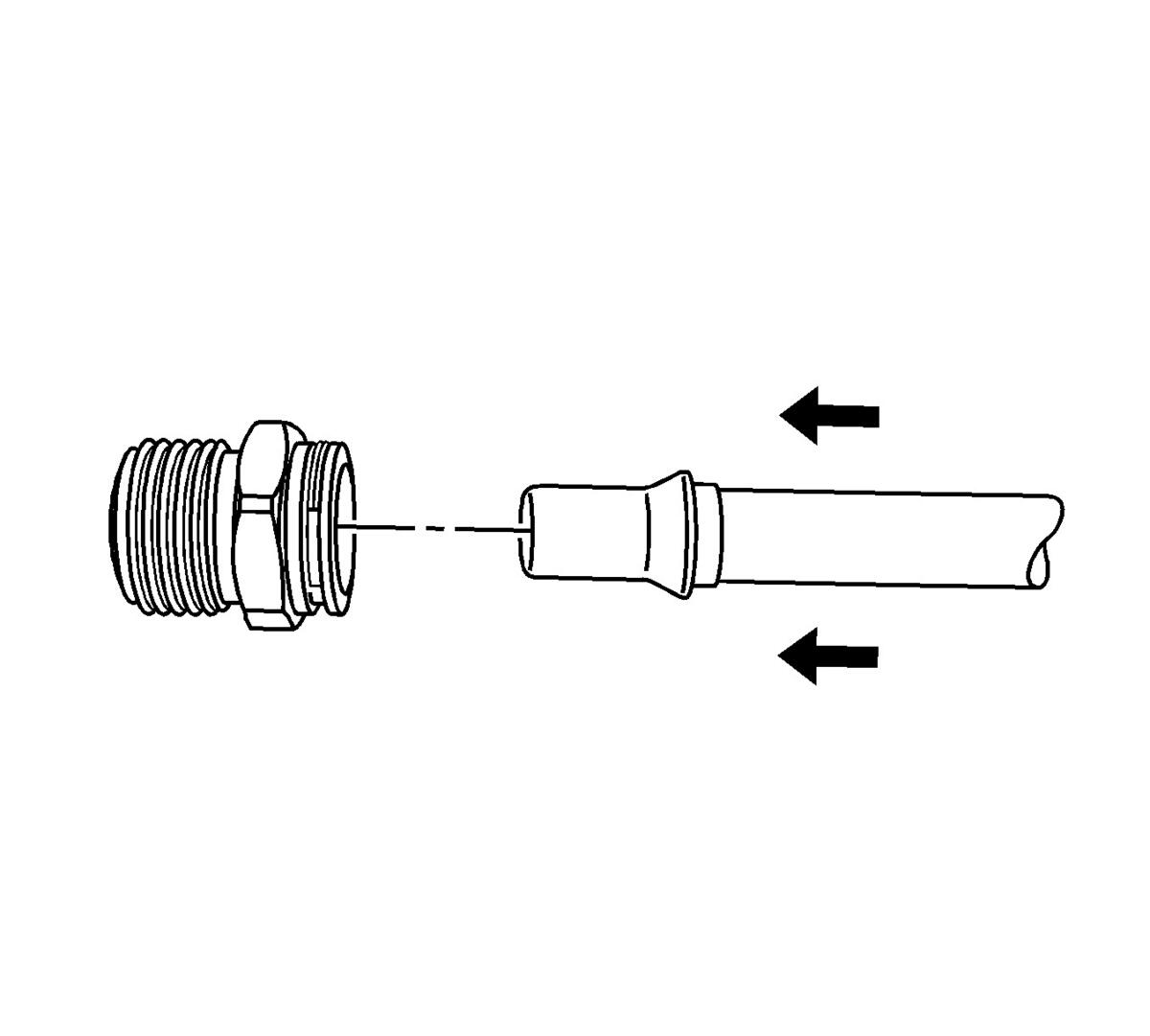

Fig 1: EOC Pipe And Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Discard the TOC retaining clip and install a new retaining clip.

Install the TOC pipe into the TOC pipe fitting.
A distinct snap should be heard or felt when assembling the TOC pipe to the fitting.
To ensure the cooler line is properly installed, give the cooler pipe a gentle pull.
