OnStar Schematics: UE1

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

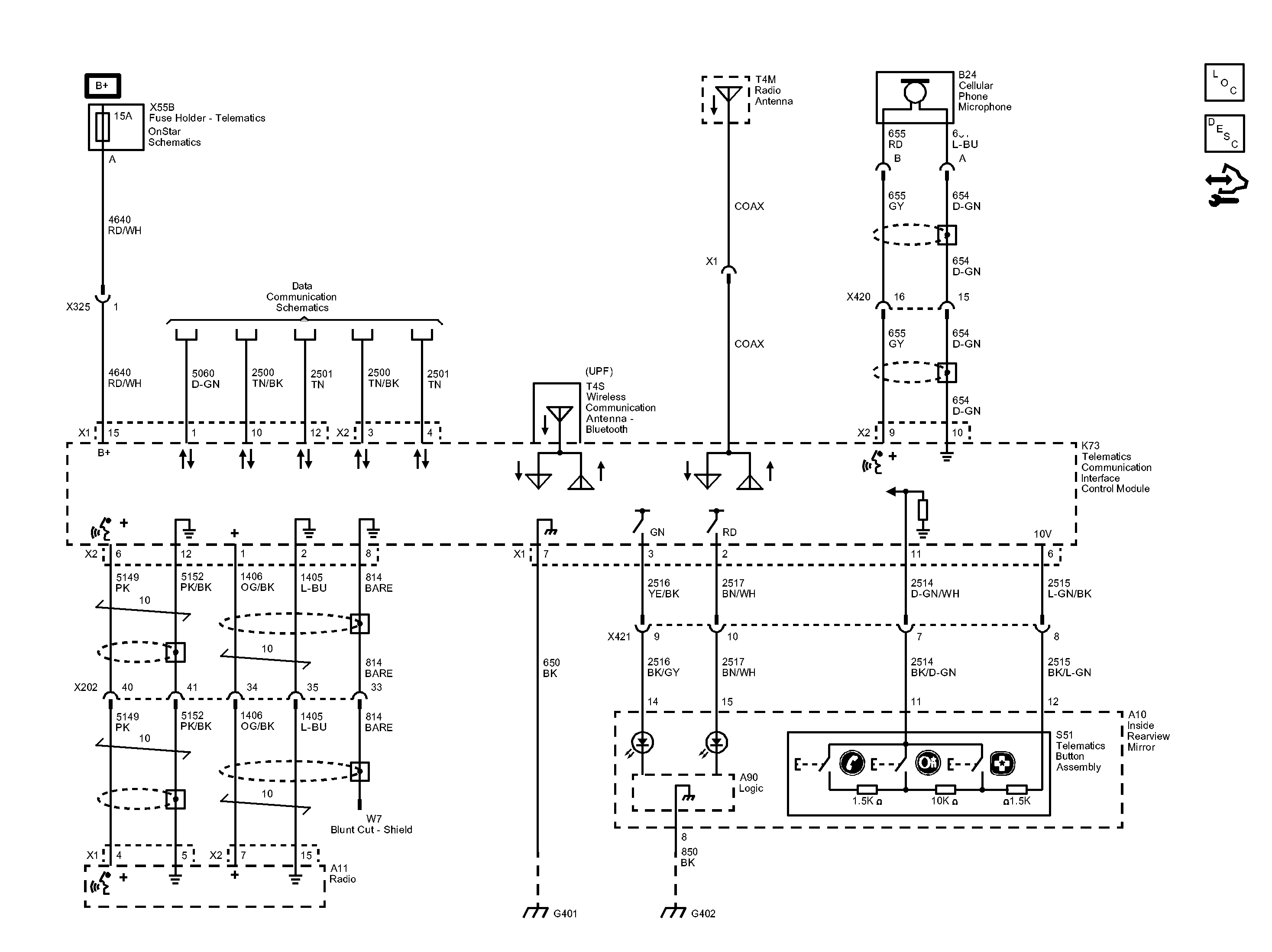

Fig 1: OnStar (UE1) Wiring Schematic
GM2867259Courtesy of GENERAL MOTORS COMPANY
