Inflatable Restraint Steering Wheel Module Coil Centering
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
- Verify the following conditions before centering the supplemental inflatable restraint (SIR) steering wheel module coil:
- The wheels on the vehicle are straight ahead.

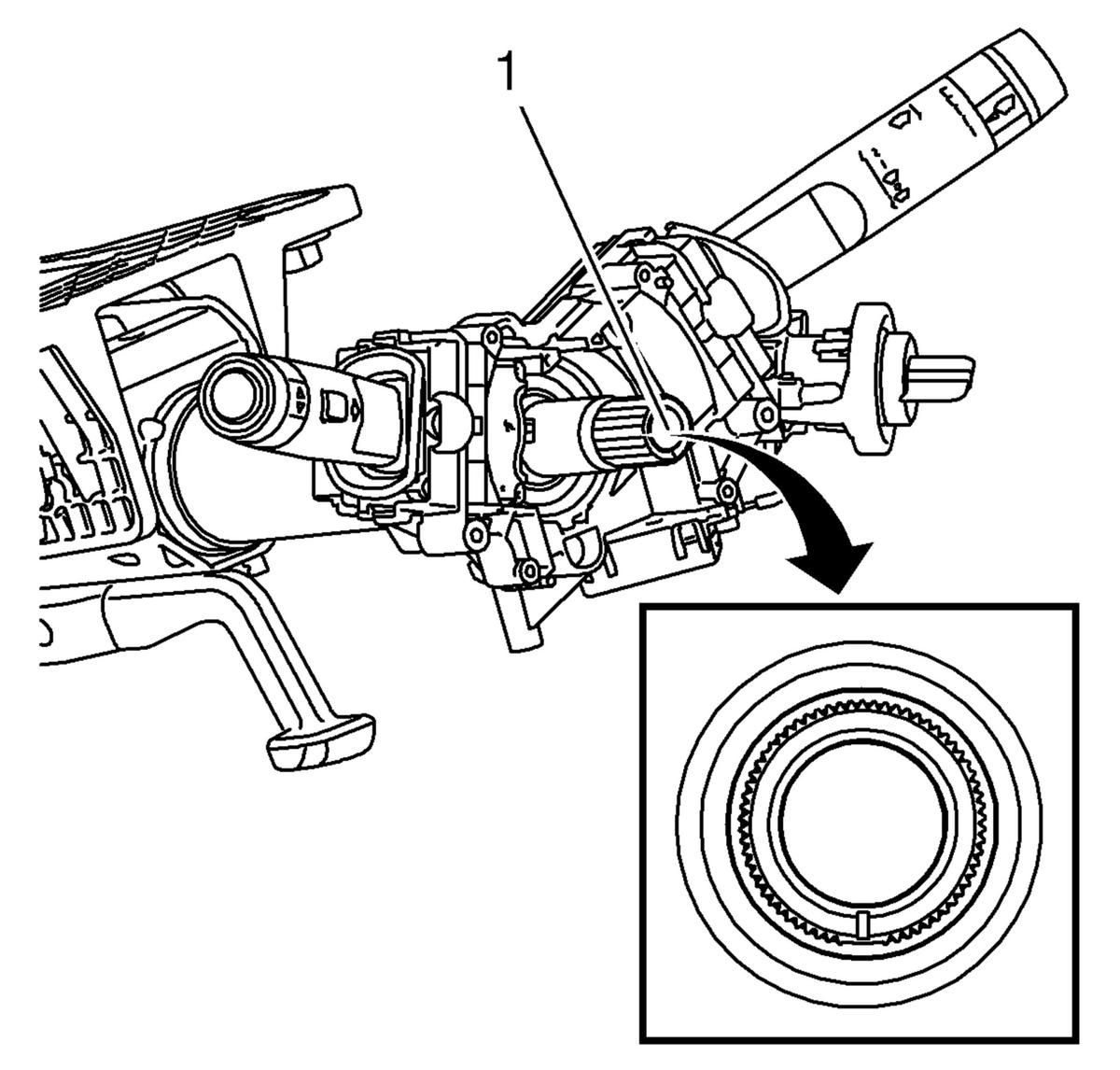

- The centering mark (1) of the steering shaft is in the 6 o'clock position.
- Turn the lobe of the clock spring clockwise until the coil ribbon stops. Do not force.
- Turn the lobe of the clock spring counterclockwise approximately 3 turns to the Neutral position.

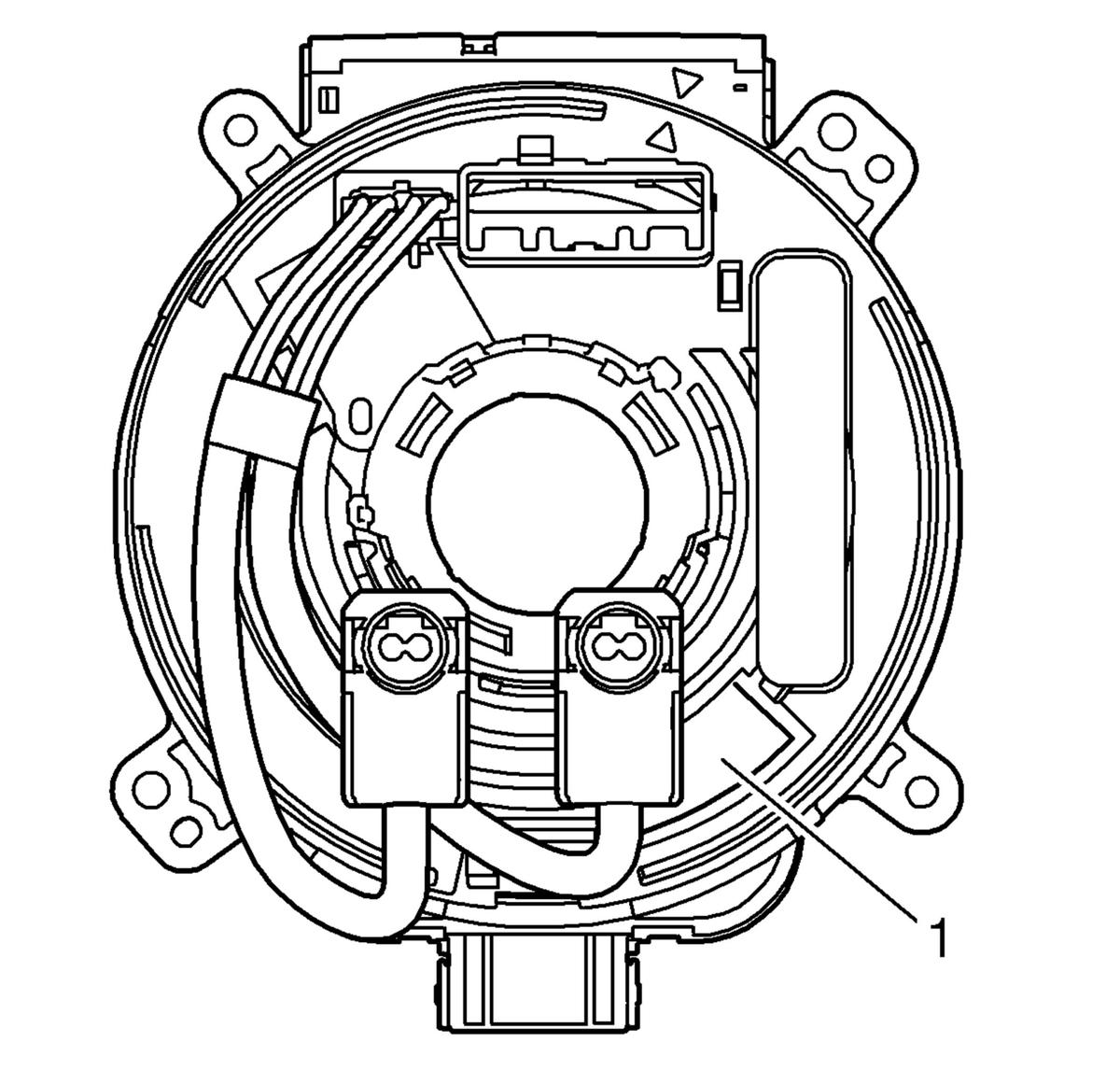

- Properly align until the centering window turns yellow (1). This indicates the CENTER position.
CAUTION:
The new SIR coil assembly will be centered. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction.
