Communication Enable and Linear Interconnect Network (LIN)

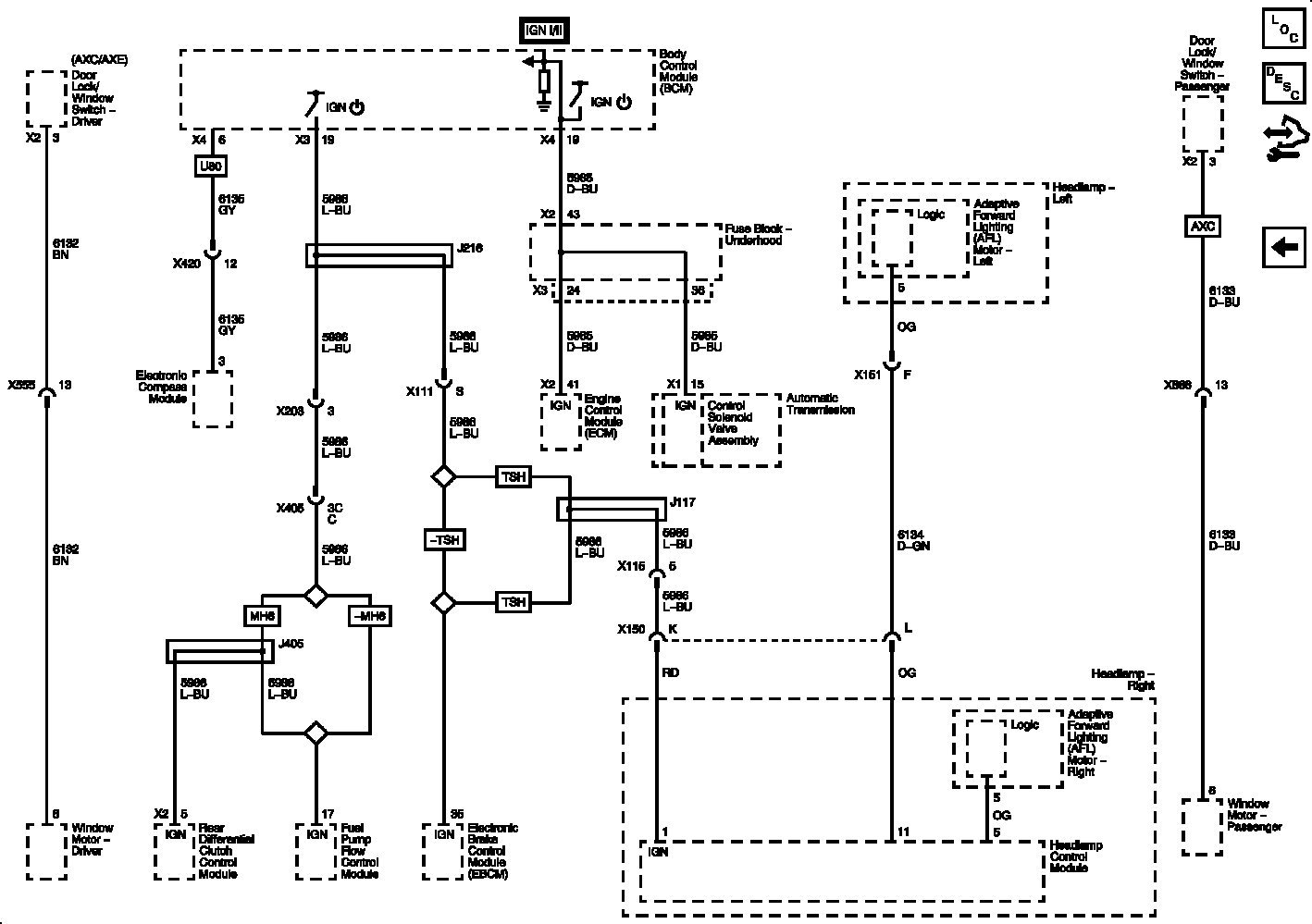

Fig 1: Communication Enable and Linear Interconnect Network (LIN) Wiring Schematic

GM2567481

Courtesy of GENERAL MOTORS COMPANY
