Power, Ground, and References to Power Distribution and Power Moding
Power, Ground, and References to Power Distribution and Power Moding

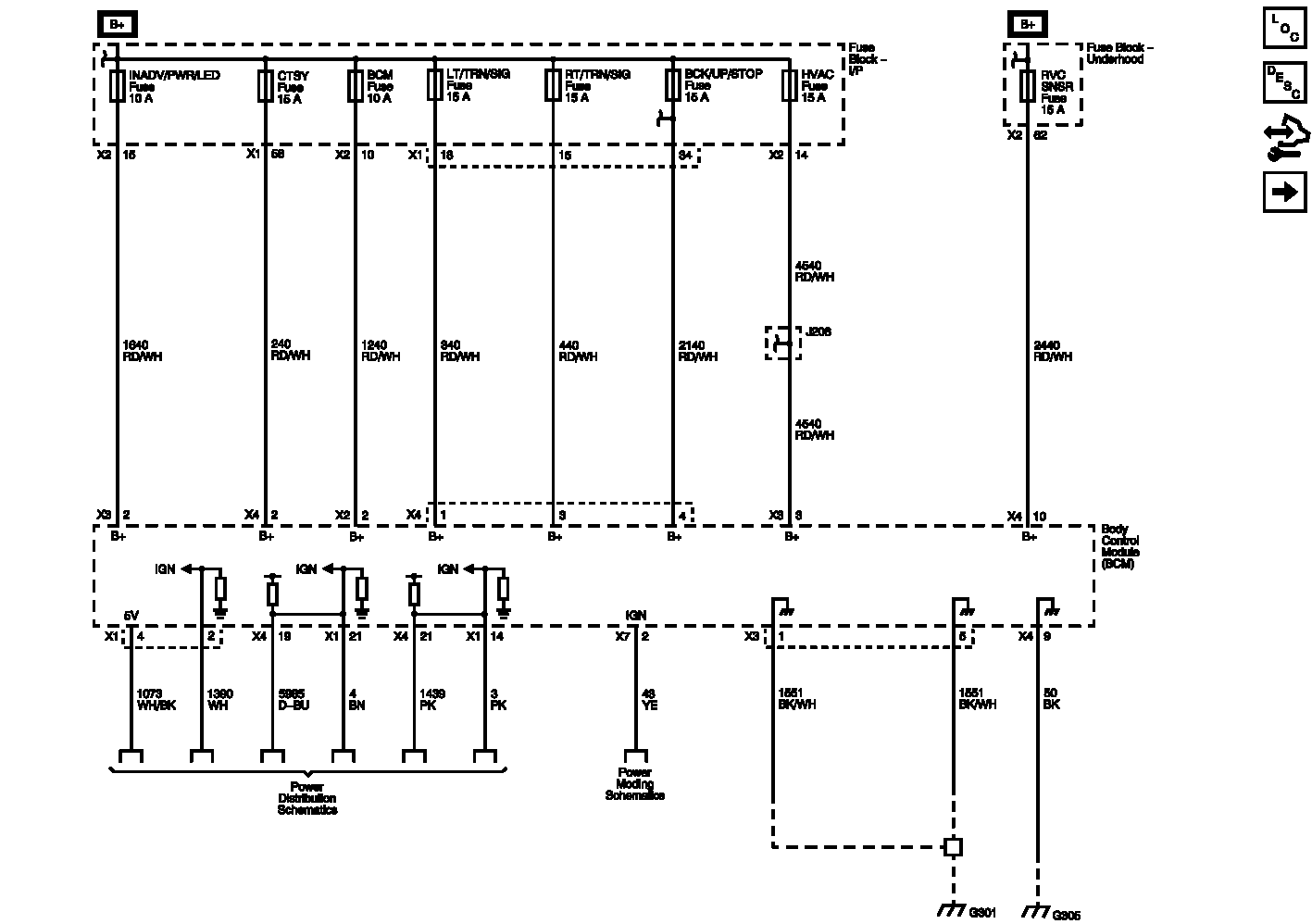

Fig 1: Power, Ground, and References to Power Distribution and Power Moding Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
