Driver Information Display Switch Replacement (Traverse)

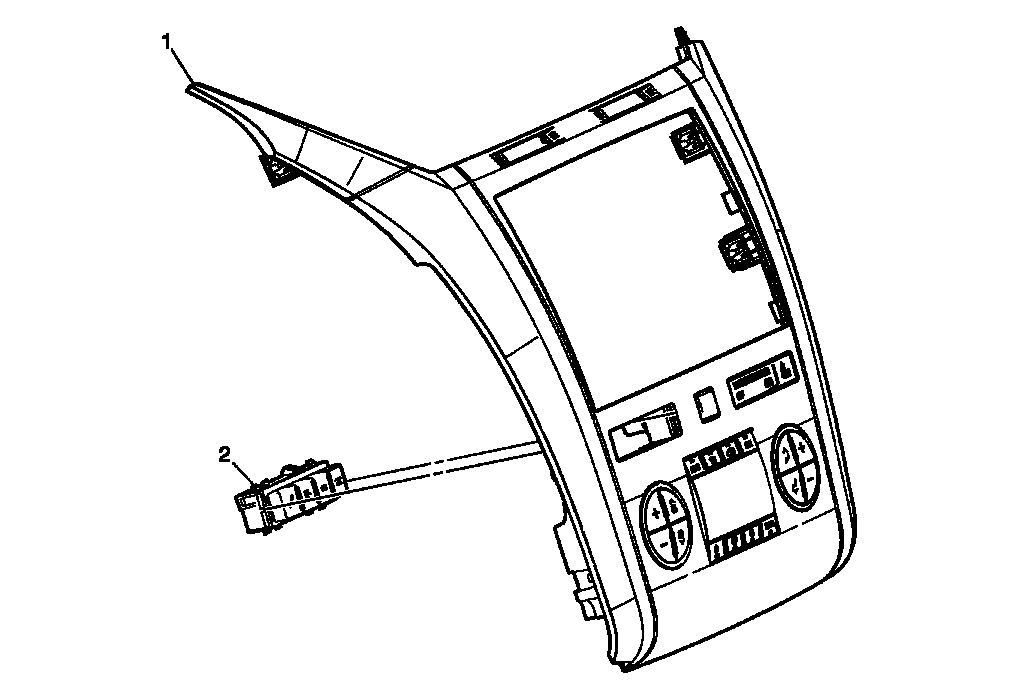

Fig 1: Identifying Driver Information Display Switch (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement (Traverse)
2	Drivers Information Center Switch Assembly Procedure Unsnap the switch assembly from the trim plate. Once the switch is replaced, remove the instrument panel cluster fuse for a few seconds then reinstall the fuse.

Callout

Component Name

Drivers Information Center Switch Assembly

Procedure

Unsnap the switch assembly from the trim plate.
Once the switch is replaced, remove the instrument panel cluster fuse for a few seconds then reinstall the fuse.
