Parking Brake Indicator Switch Replacement

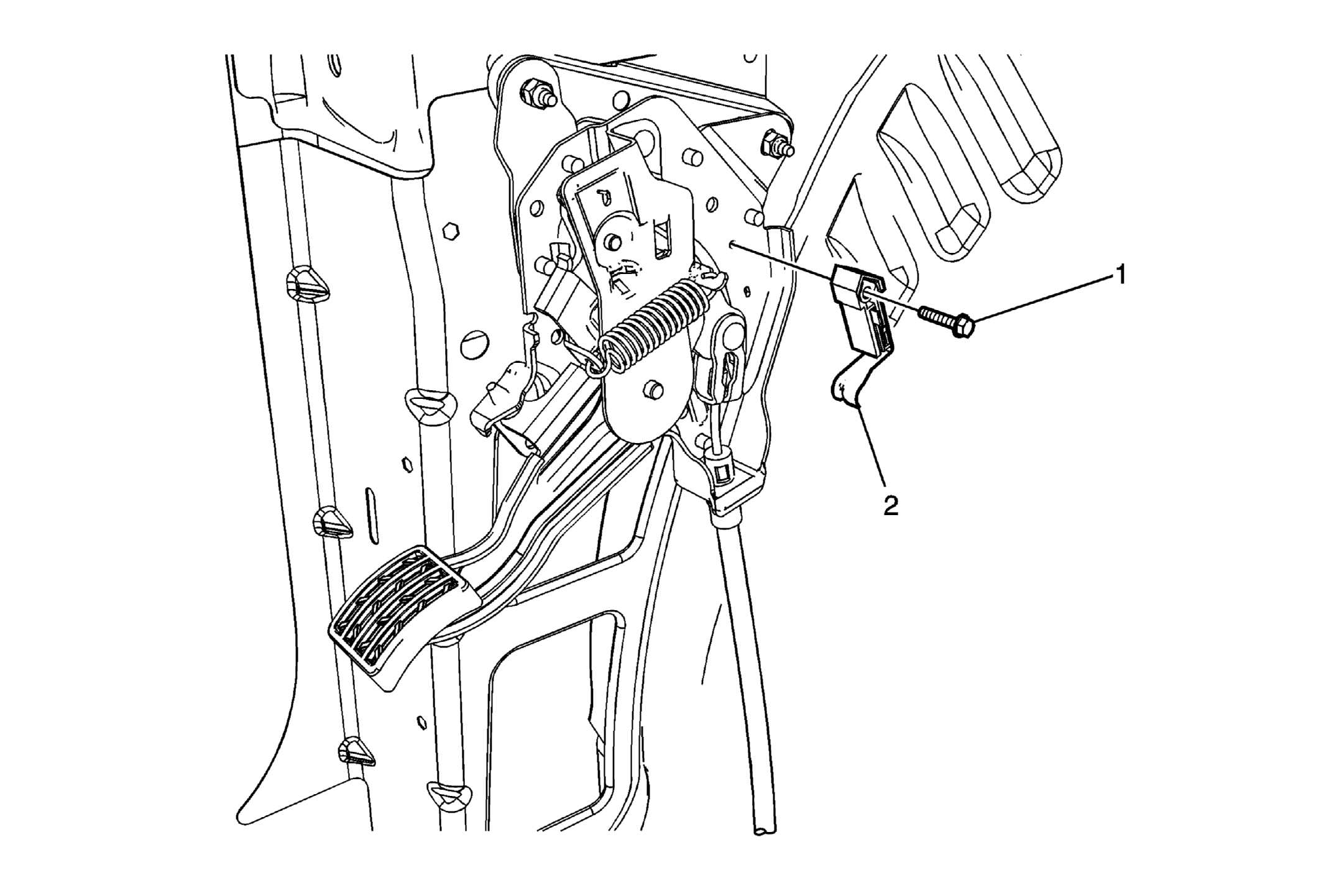

Fig 1: Identifying Parking Brake Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Enclave) , Instrument Panel Insulator Panel Replacement - Left Side (Acadia) , Instrument Panel Insulator Panel Replacement - Left Side (Traverse) . Remove the driver side front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement . Disconnect the park brake warning indicator switch electrical connector.
1	Park Brake Warning Lamp Switch Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Park Brake Warning Lamp Switch

Callout

Component Name

Preliminary Procedures

Park Brake Warning Lamp Switch Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Park Brake Warning Lamp Switch
