Driver Seat Lumbar Control Switch Replacement

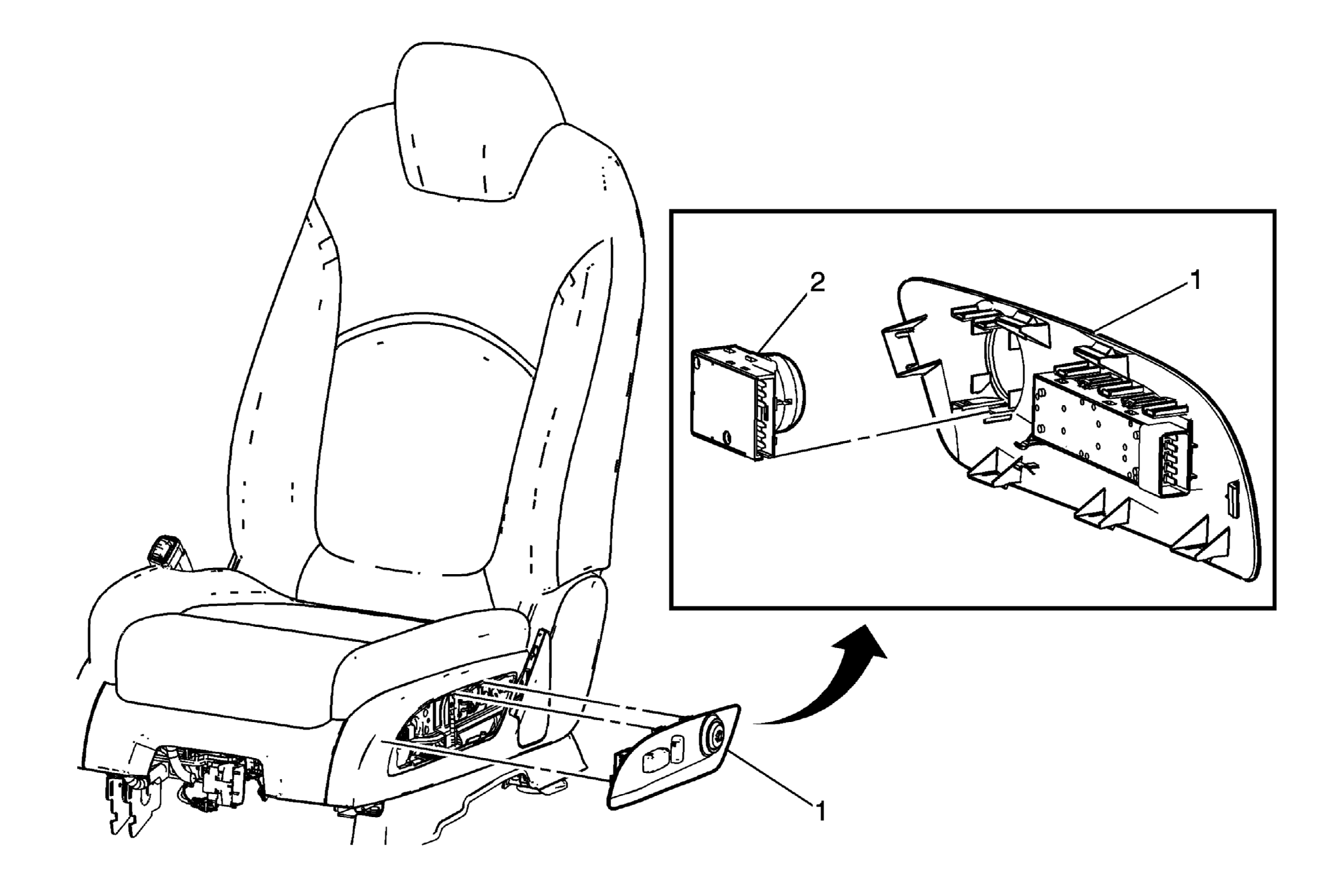

Fig 1: Driver Seat Lumbar Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driver Seat Adjuster Switch Mounting Plate Procedure Using a non-metallic flat-bladed tool, release the retainer tabs starting at the rear edge and working forward while pulling outward on the mounting plate. Disconnect the electrical connectors from the switch assemblies.
2	Driver Seat Lumbar Control Switch Assembly TIP: Use a flat-bladed tool to release the switch from the mounting plate.

Callout

Component Name

Driver Seat Adjuster Switch Mounting Plate

Procedure

Using a non-metallic flat-bladed tool, release the retainer tabs starting at the rear edge and working forward while pulling outward on the mounting plate.
Disconnect the electrical connectors from the switch assemblies.

Driver Seat Lumbar Control Switch Assembly
TIP: Use a flat-bladed tool to release the switch from the mounting plate.
