Driver Seat Adjuster Switch Replacement

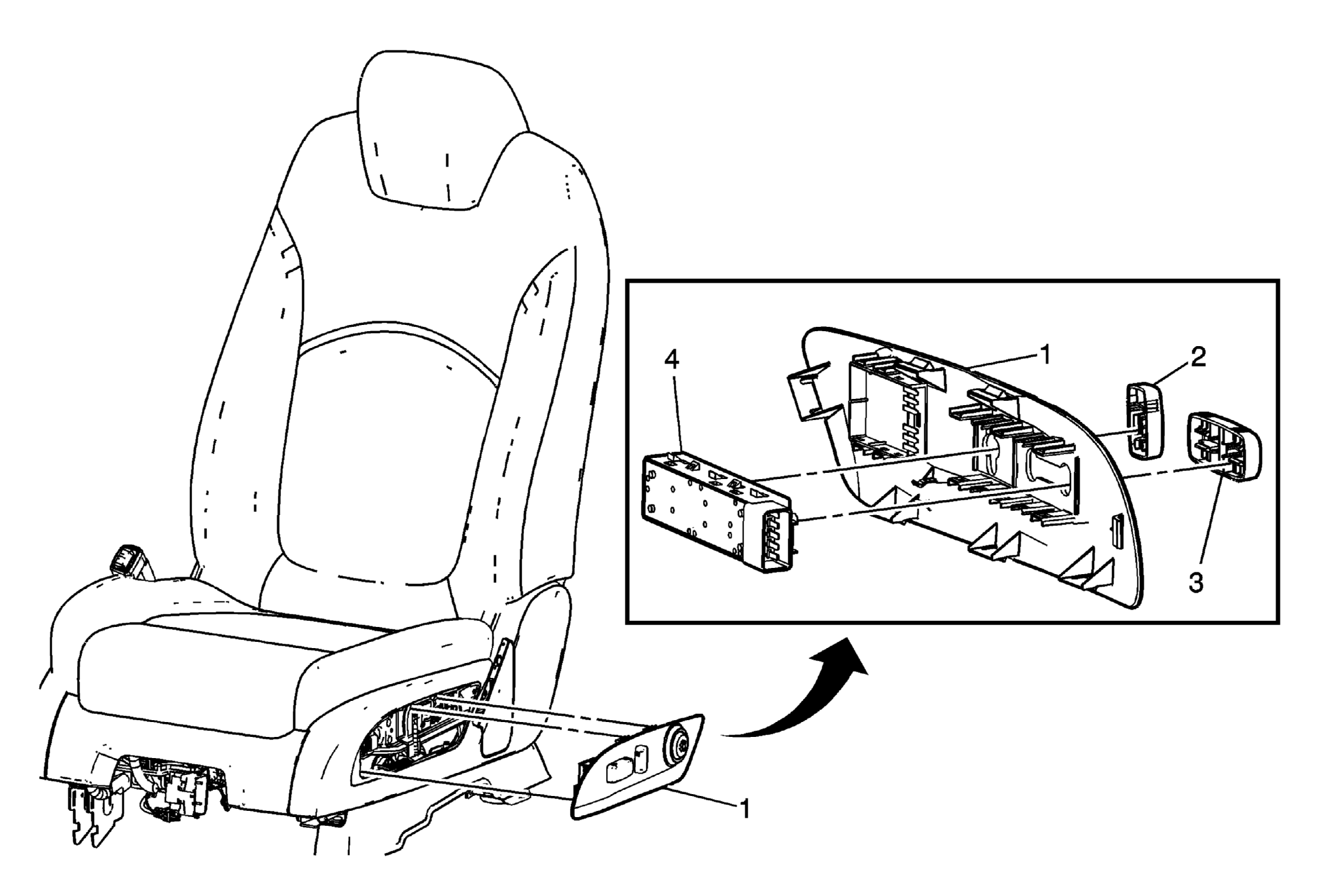

Fig 1: Driver Seat Adjuster Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driver Seat Adjuster Switch Mounting Plate Procedure Using a non-metallic flat-bladed tool, release the retainer tabs starting at the rear edge and working forward while pulling outward on the mounting plate. Disconnect the electrical connectors from the switch assemblies.
2	Driver Seat Recliner Knob TIP: Use a flat-bladed tool to release the knob from the mounting plate.
3	Driver Seat Adjuster Knob TIP: Use a flat-bladed tool to release the knob from the mounting plate.
4	Driver Seat Adjuster and Recliner Switch TIP: Use a flat-bladed tool to release the switch from the mounting plate.
