Driver Seat Adjuster Memory Switch Replacement
Driver Seat Adjuster Memory Switch Replacement

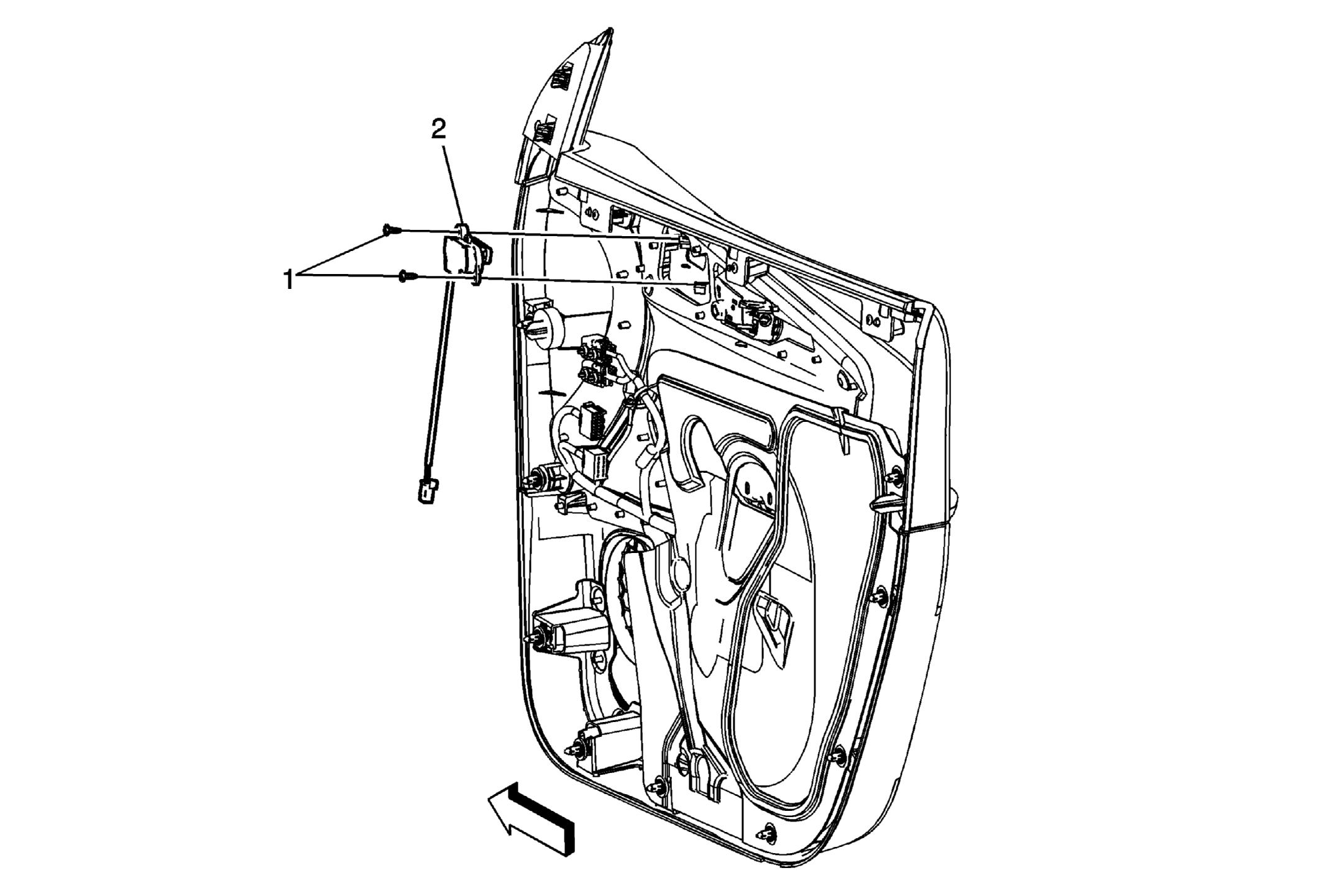

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front driver side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Traverse) , Front Side Door Trim Panel Replacement - Left Side (Acadia) , Front Side Door Trim Panel Replacement - Left Side (Enclave) . |
|
| 1 | Driver Seat Adjustable Memory Switch Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Driver Seat Adjustable Memory Switch Procedure Disconnect the electrical connector. |
