Front Differential Carrier Assembly

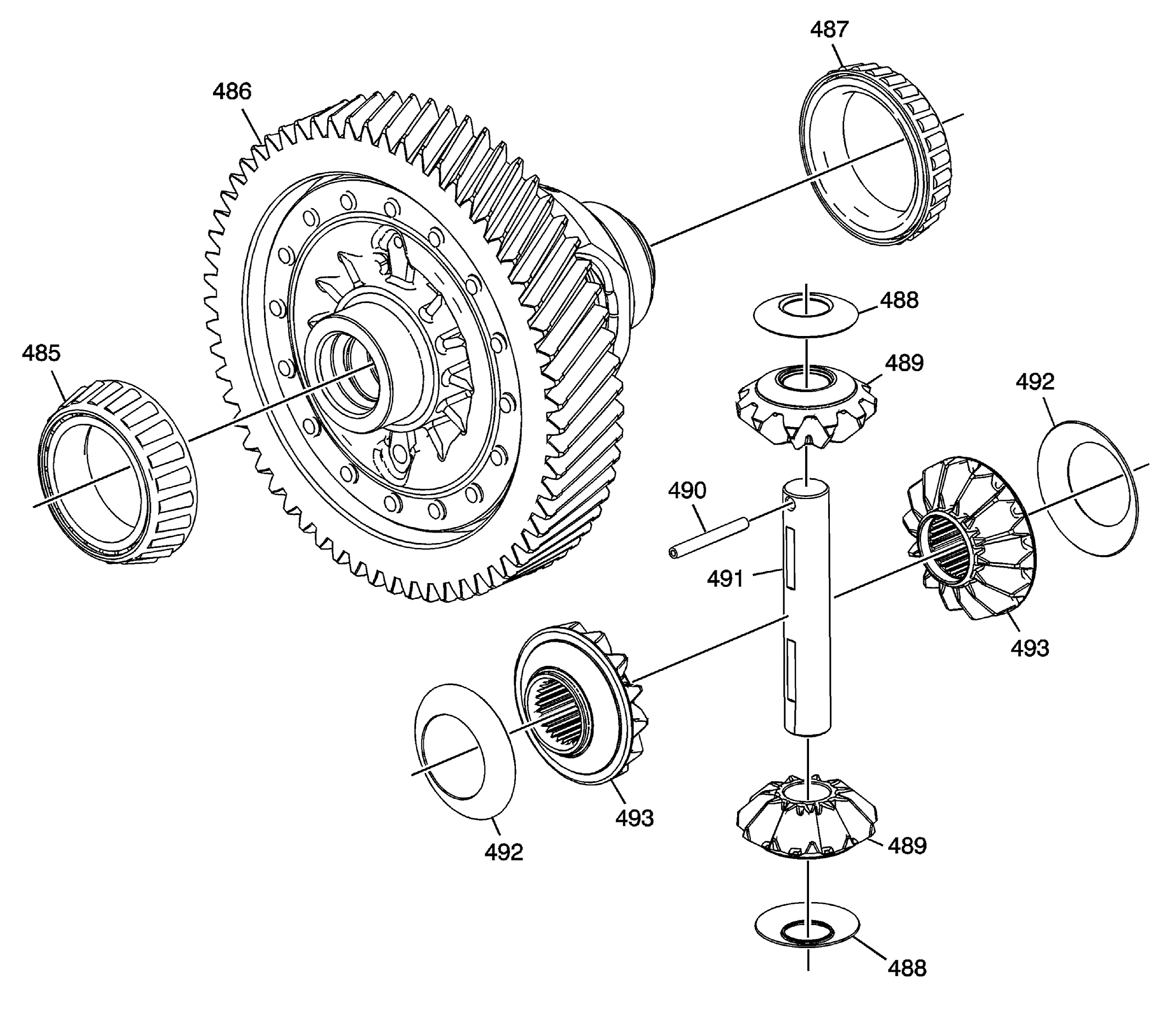

Fig 1: Identifying Front Differential Carrier Assembly Components
GM1725918Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
485 Front Differential Carrier Bearing Assembly
486 Front Differential Carrier Assembly
487 Front Differential Carrier Bearing Assembly
488 Front Differential Carrier Thrust Washer
489 Front Differential Pinion Gear
490 Front Differential Pinion Gear Shaft Retainer
491 Front Differential Pinion Gear Shaft
492 Front Differential Side Gear Thrust Washer
493 Front Differential Side Gear
