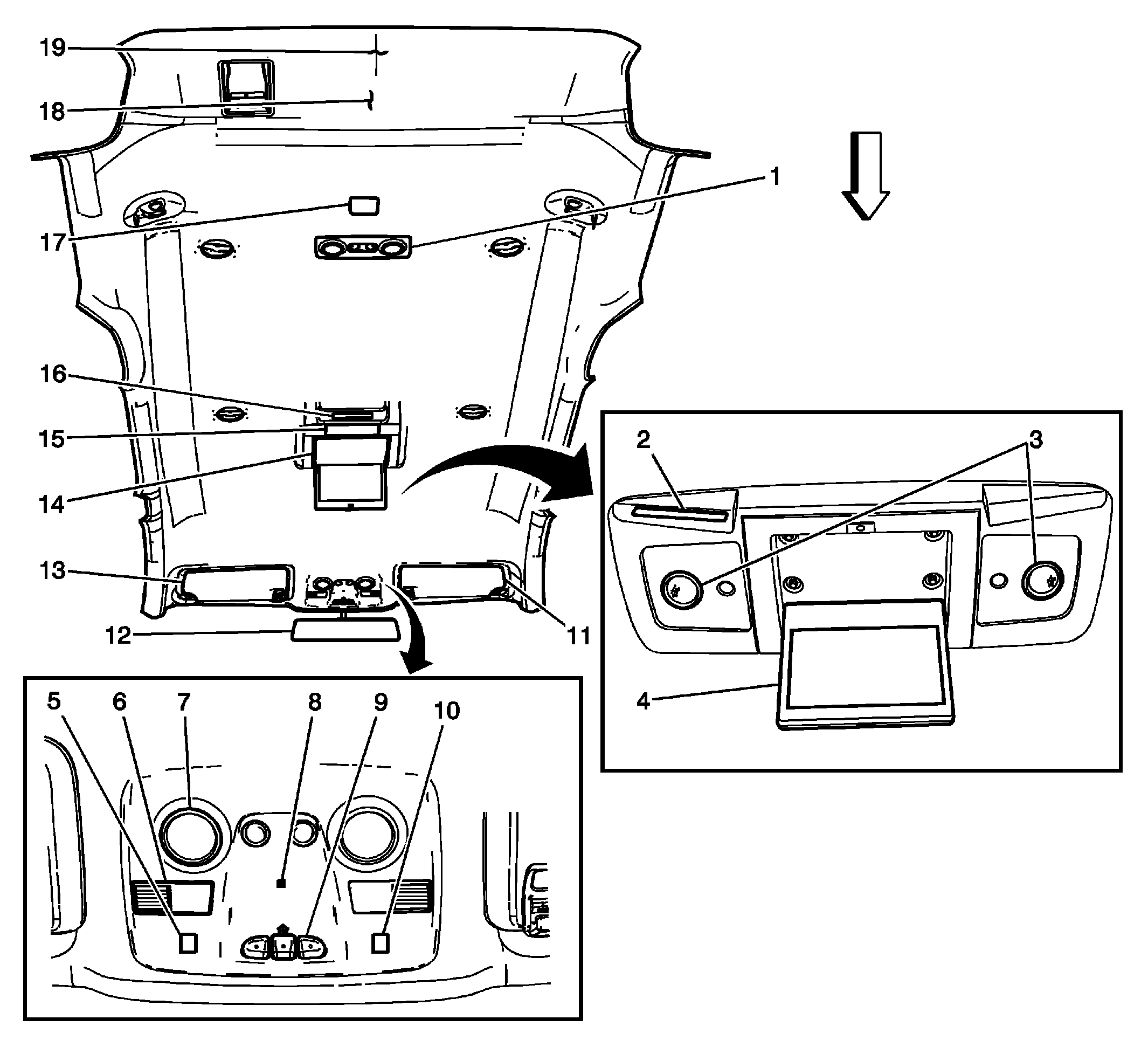

Headliner Components
Headliner Components
| Component Name | Callout |
|---|---|
| Courtesy/Reading Lamps- 3rd Row | 1 |
| Infrared Transmitter (U42 with C3U) | 2 |
| Courtesy/Reading Lamps- 2nd Row (U42 with C3U) | 3 |
| Digital Video Disc (DVD) Display (U42 with C3U) | 4 |
| Sunroof Switch (C3U) | 5 |
| Cellular Telephone Microphone (UE1) | 6 |
| Overhead Console Courtesy/Reading Lamps- Front | 7 |
| Console Flood Lamp | 8 |
| Garage Door Opener (GDO) (UG1) | 9 |
| Sunroof Shade Switch (C3U) | 10 |
| Sunshade- Right | 11 |
| Inside Rearview Mirror (ISRVM) | 12 |
| Sunshade- Left | 13 |
| Digital Video Disc (DVD) Display (U42 without C3U) | 14 |
| Courtesy/Reading Lamps- 2nd Row (without C3U) | 15 |
| Infrared Transmitter (U42 without C3U) | 16 |
| Rear Parking Assist (RPA) Display (UD7) | 17 |
| Electronic Compass Module (U80) | 18 |
| Remote Control Door Lock Receiver (RCDLR) | 19 |
