Fuse Block - I/P Bottom Label

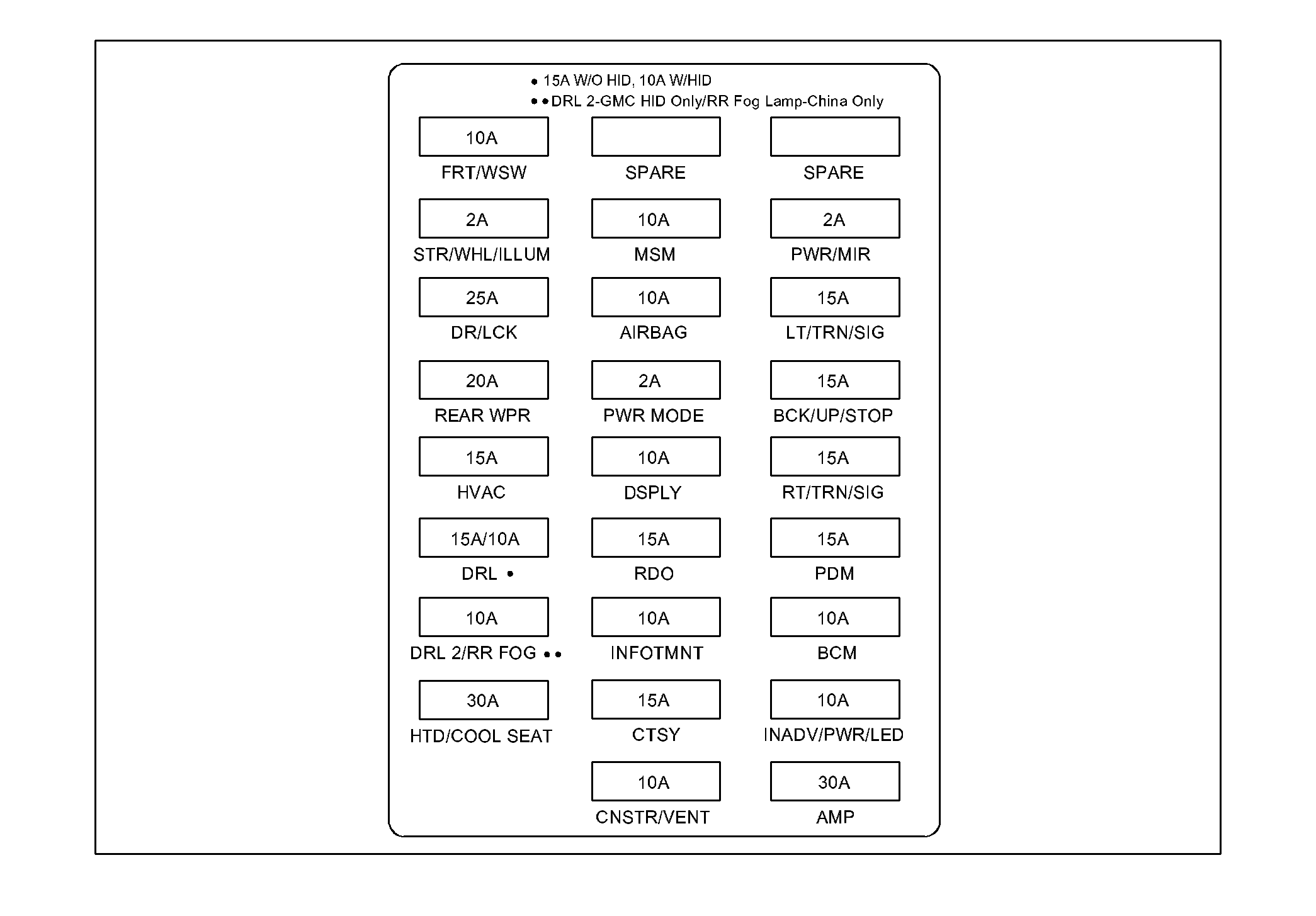

Fig 1: Fuse Block -- I/P Bottom Label
GM2519647Courtesy of GENERAL MOTORS COMPANY
FUSE BLOCK- I/P BOTTOM FUSE IDENTIFICATION LEGEND

Fuse Rating Description
AIRBAG 10A Inflatable Restraint Front Passenger Presence System (PPS) Sensor, Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Vehicle Rollover Sensor
AMP 30A Audio Amplifier (UQA or UQS)
BCK/UP/STOP 15A Body Control Module (BCM), Steering Wheel/Column Tilt/Telescope Switch (N38)
BCM 10A Body Control Module (BCM)
CNSTR/VENT 10A Evaporative Emission (EVAP) Canister Vent Solenoid Valve
CTSY 15A Body Control Module (BCM)
DSPLY 10A Clock (W49), Data Link Connector (DLC), Instrument Panel Cluster (IPC), Liftgate Module (LGM) (TB5), Remote Control Door Lock Receiver (RCDLR)
DRL 15A/10A Daytime Running Lamp Relay (T61)
DRL 2 10A Daytime Running Lamp Relay - Left (Z88 with TVD)
DR/LCK 25A Door Lock Relay, Driver Door Unlatch Relay, Door Unlock Relay
FRT/WSW 10A Windshield Washer Fluid Pump
HTD/COOL SEAT 30A Heated Seat Control Module- Driver (KA1 without A45) or Seat Back Ventilation and Cooling Module- Driver, Seat Cushion Ventilation and Cooling Module- Driver, Seat Back Ventilation and Cooling Module- Passenger, and Seat Cushion Ventilation and Cooling Module- Passenger (KB6)
HVAC 15A Body Control Module (BCM), Head Up Display (HUD) (UV6), HVAC Control Module
INADV/PWR/LED 10A Body Control Module (BCM)
INFOTMNT 10A Digital Radio Receiver (U2K or UBS), Digital Video Disc (DVD) Player (U42), Radio/HVAC Control- Auxiliary (ULD)
LT/TRN/SIG 15A Body Control Module (BCM)
MSM 10A Garage Door Opener (UG1), Memory Seat Module (AG3), and Object Alarm Module (UD7)
PDM 15A Liftgate Release Relay (TB4), Door Control Module- Passenger (AXE)
PWR/MIR 2A Outside Rearview Mirror Switch (DL6 or DS3)
PWR MODE 2A Ignition Switch, Theft Deterrent Module (TDM)
RDO 15A Radio
REAR WPR 20A Rear Window Wiper Motor, Rear Window Washer Pump Relay
RR FOG 10A Rear Fog Lamp Relay (W49 with T79)
RT/TRN/SIG 15A Body Control Module (BCM)
STR/WHL/ILLUM 2A Steering Wheel Control Switch- Left, Steering Wheel Control Switch- Right (UK3)
