Power, Ground, Serial Data, Antennas, Lighting, and Vehicle Speed Signal

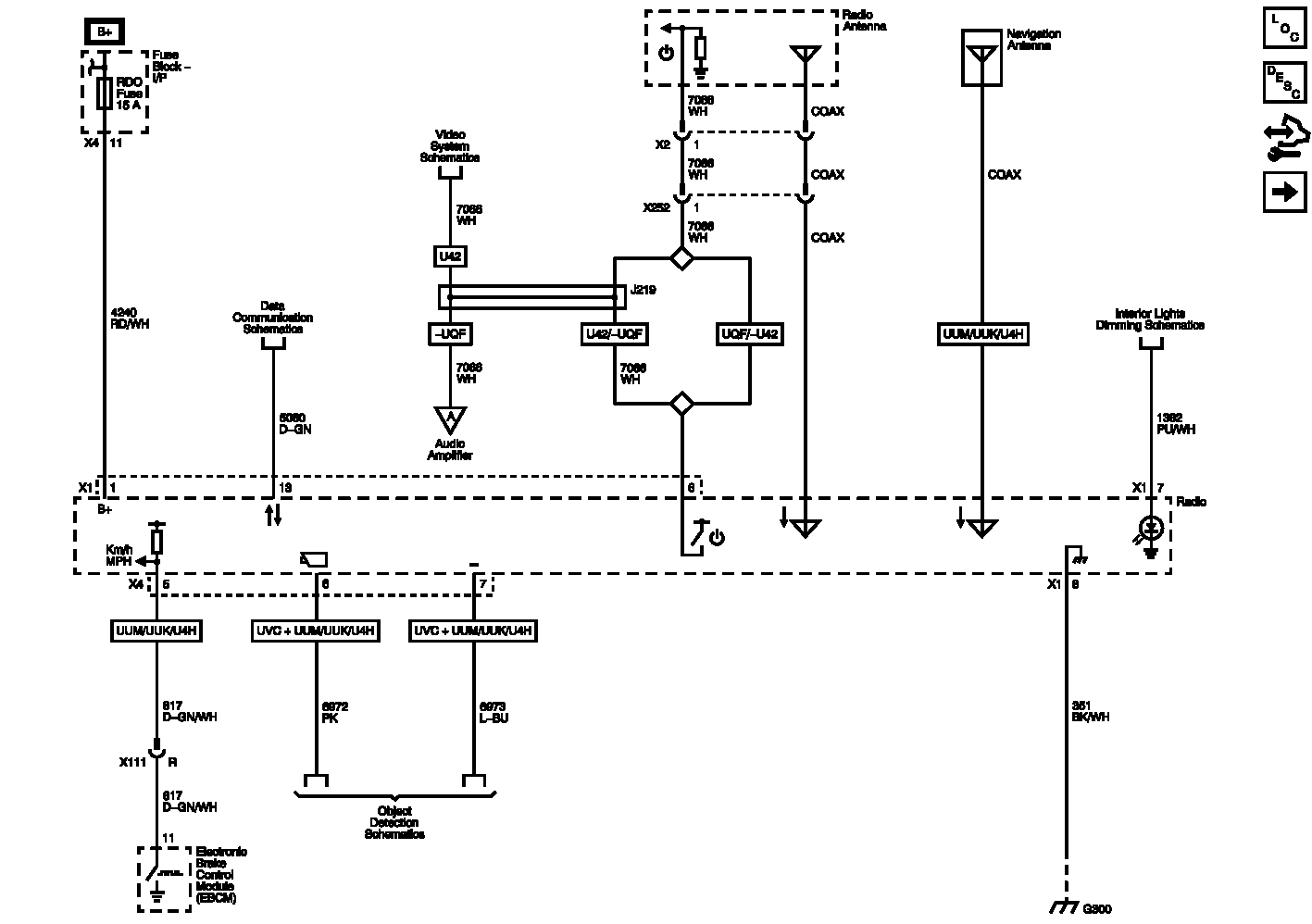

Fig 1: Power, Ground, Serial Data, Antennas, Lighting, and Vehicle Speed Signal Wiring Diagram
GM2566925Courtesy of GENERAL MOTORS COMPANY
