Front of Engine Compartment Components

Front of Engine Compartment Components

Component Name Callout
G10 Cooling Fan Motor 1
B59 Front Impact Sensor 2
B55 Hood Ajar Switch (UTJ) 3
B34B Engine Coolant Temperature Sensor 2 4

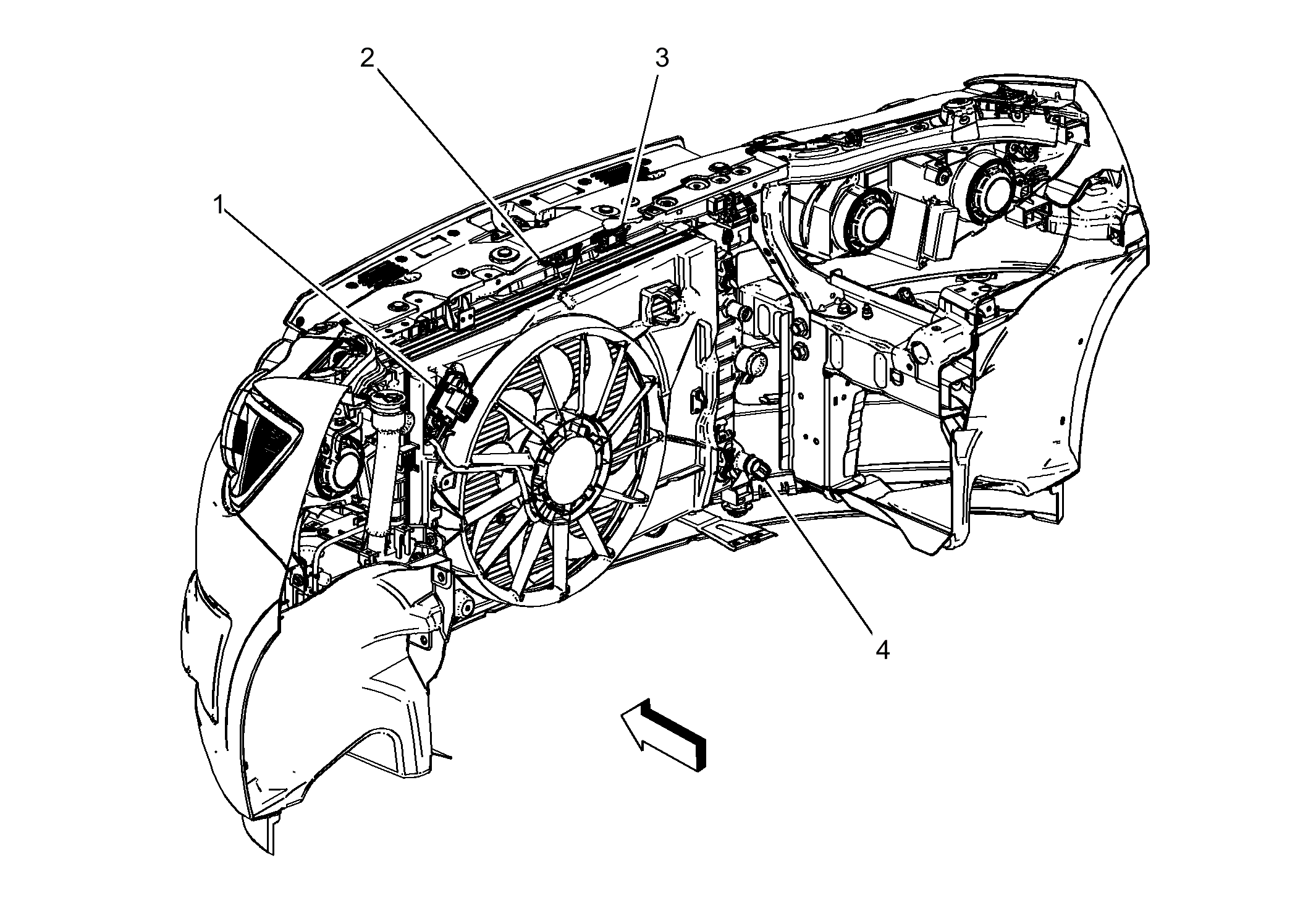

Fig 1: Front of Engine Compartment Components
GM2536404Courtesy of GENERAL MOTORS COMPANY
