Data Link Power, Ground, and Low Speed GMLAN

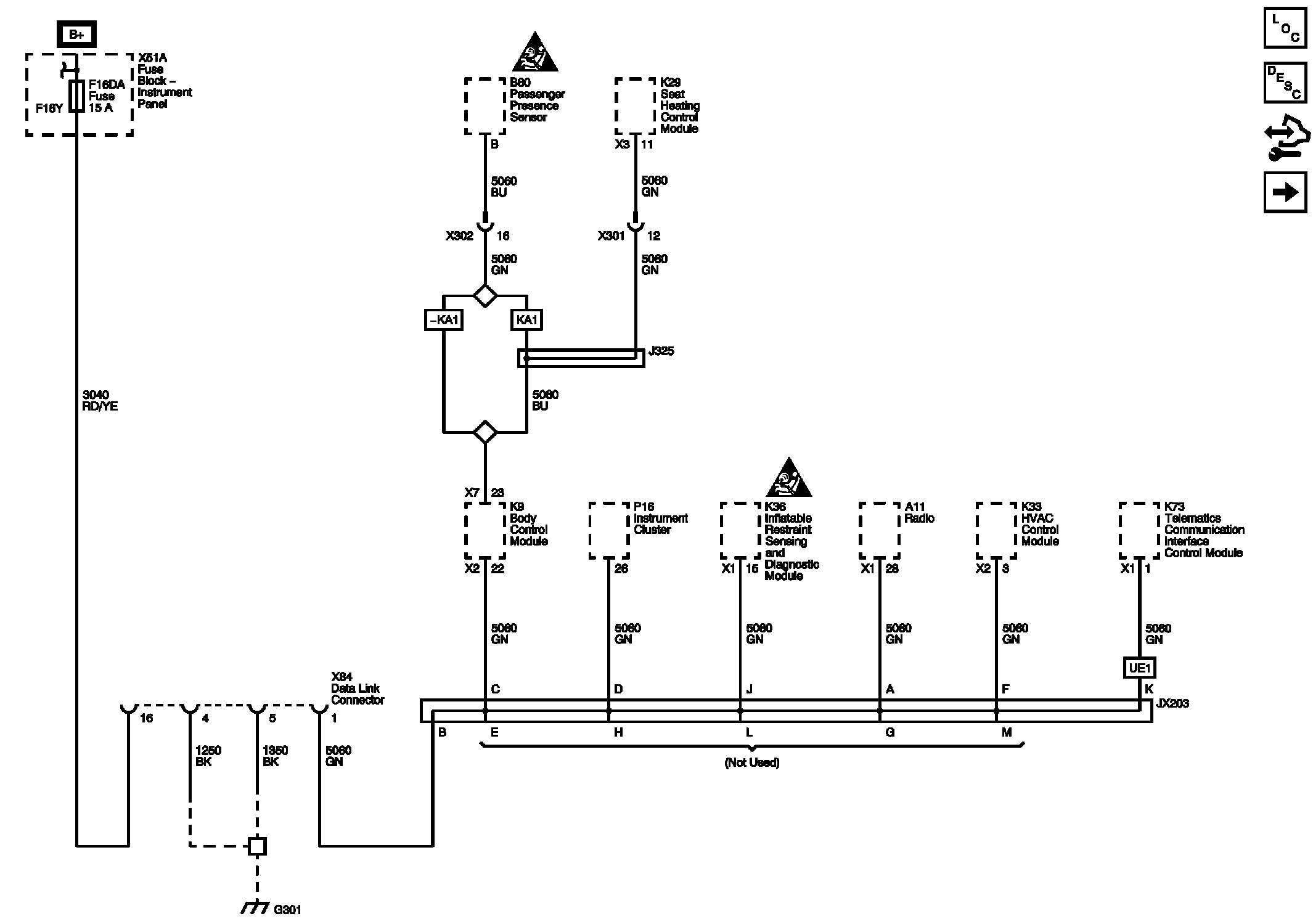

Fig 1: Data Link Power, Ground, and Low Speed GMLAN Wiring Schematic

GM2592137

Courtesy of GENERAL MOTORS COMPANY
