Radiator Upper Bracket Replacement

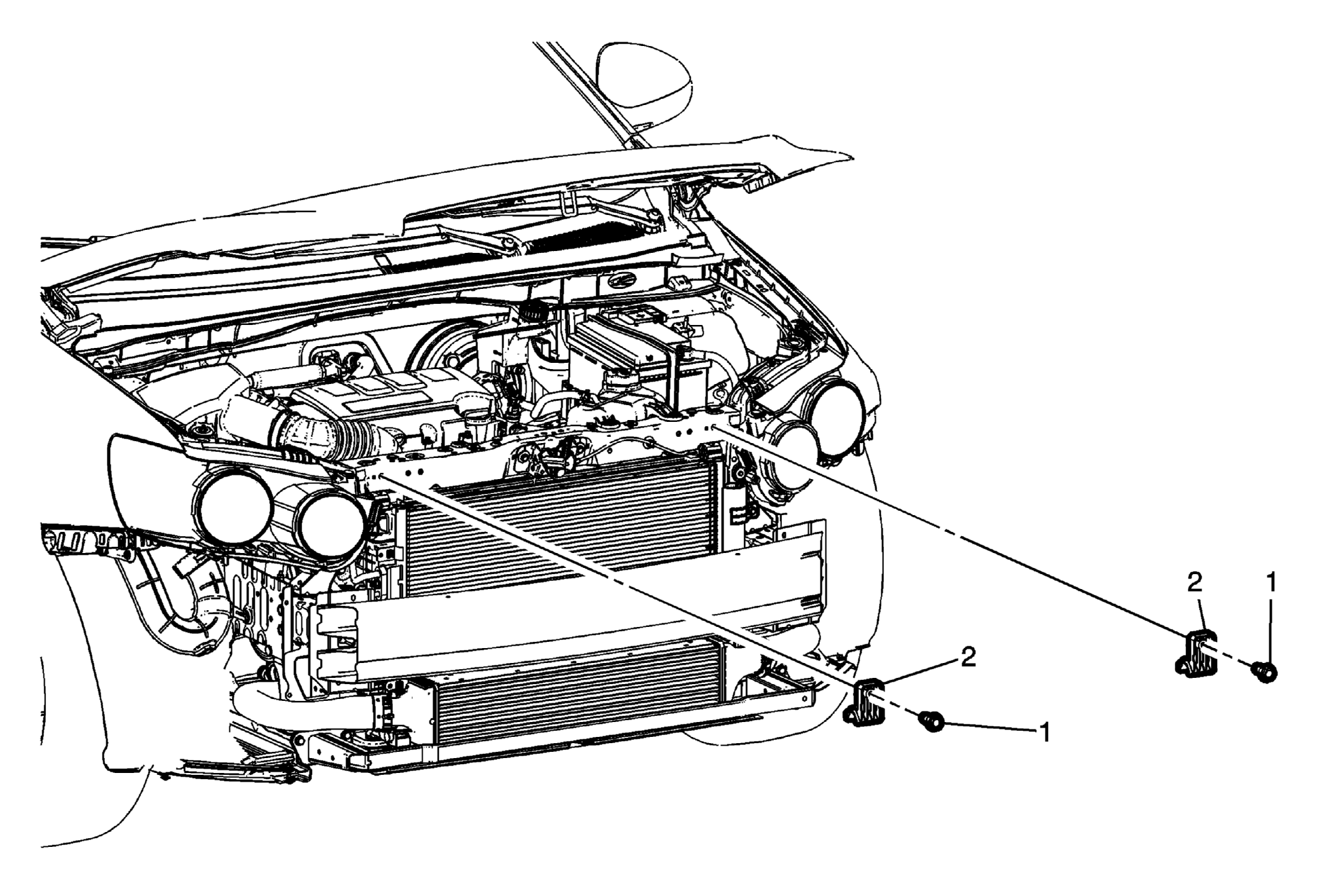

Fig 1: Radiator Upper Bracket
GM2680733Courtesy of GENERAL MOTORS COMPANY
Radiator Upper Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement .
1 Radiator Upper Bracket Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9Y(80 lb in)
2 Radiator Upper Bracket (Qty: 2)
