Radio/Navigation System Wiring Schematics
>>
Power, Ground, Serial Data, Antenna, and Audio Input
Power, Ground, Serial Data, Antenna, and Audio Input

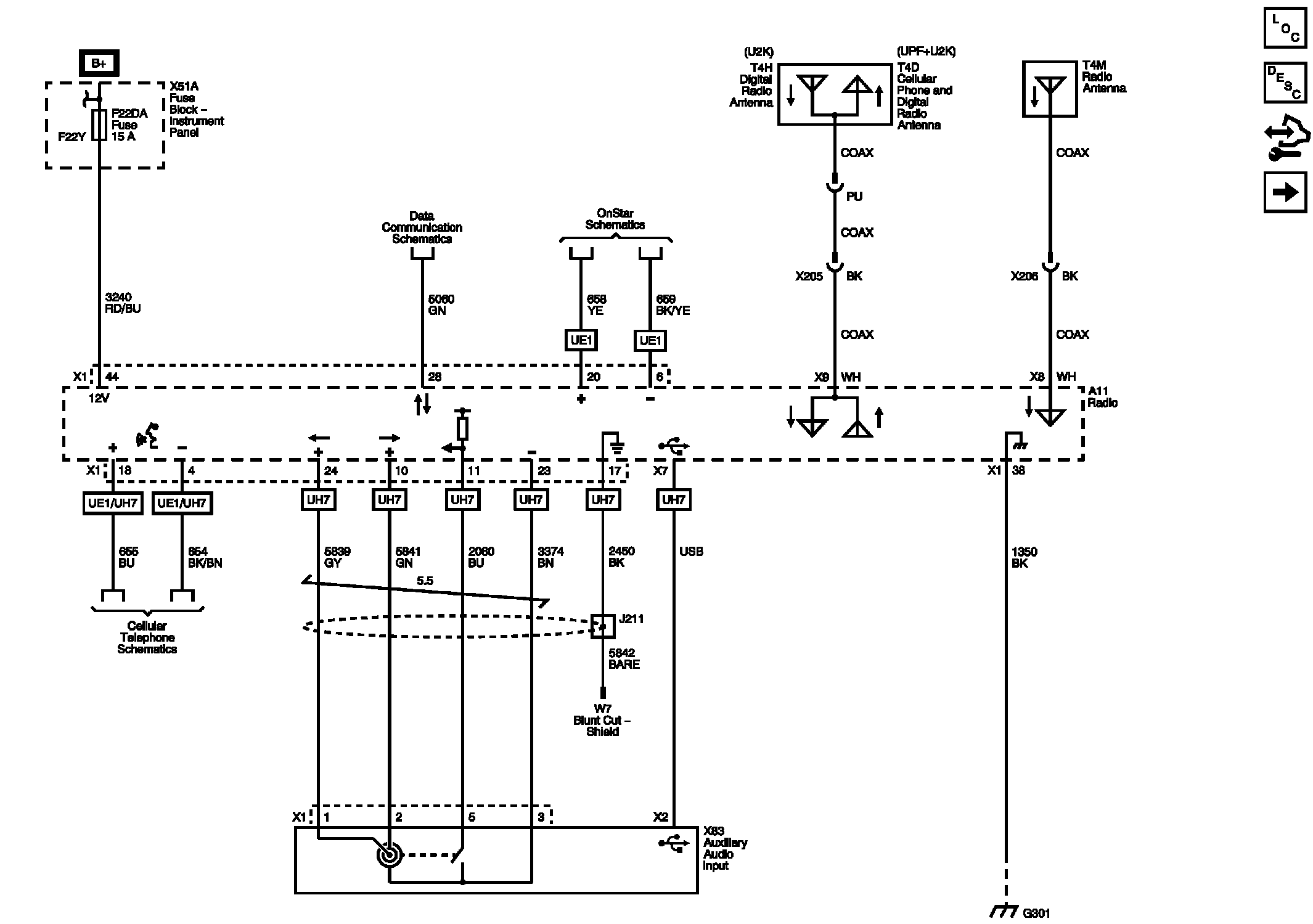

Fig 1: Power, Ground, Serial Data, Antenna, and Audio Input Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
