Inflatable Restraint Instrument Panel Lower Module Replacement - Passenger Side

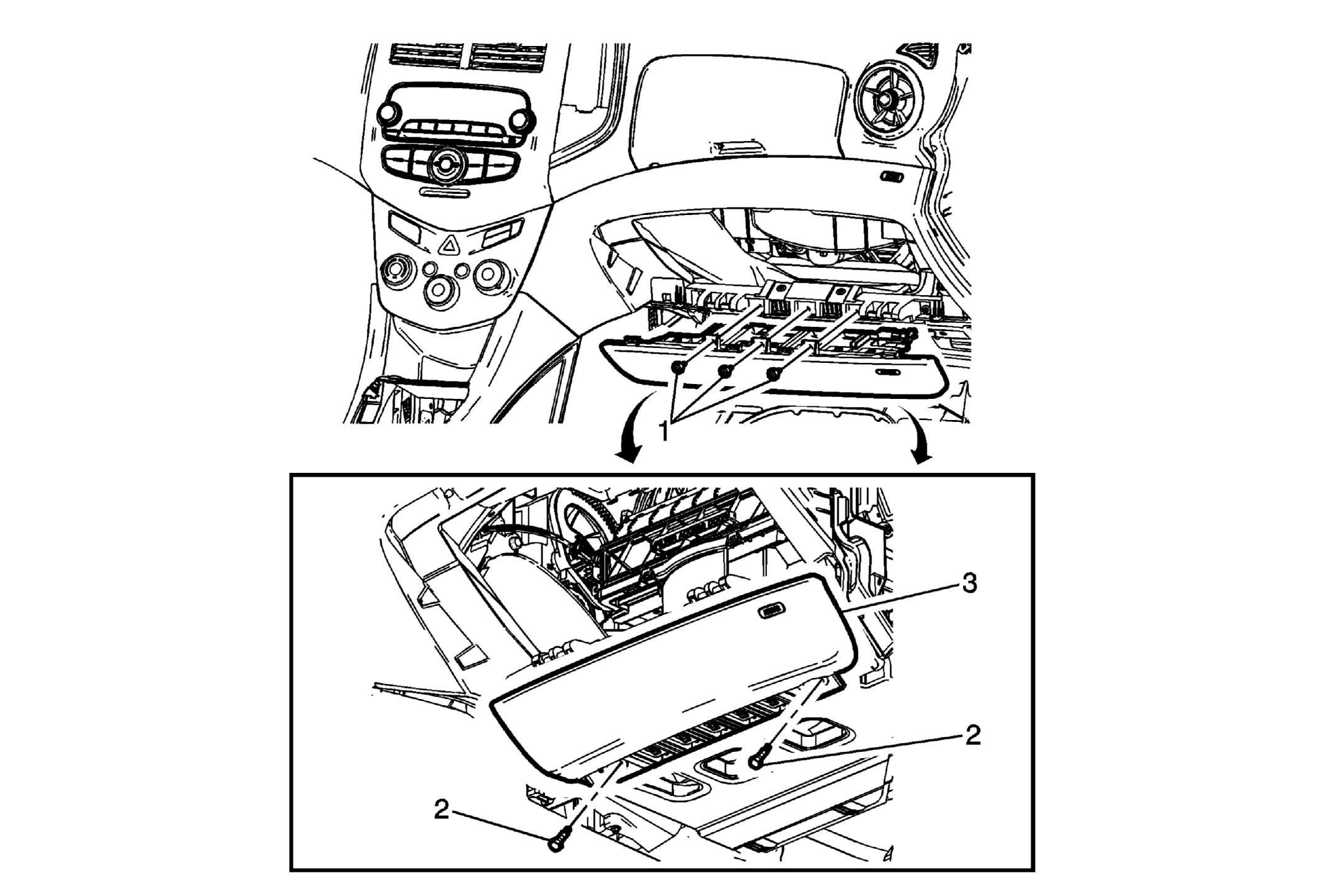

Fig 1: Inflatable Restraint Instrument Panel Lower Module & Fasteners - Passenger Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the instrument panel lower compartment. Refer to Instrument Panel Lower Compartment Replacement .
1	Instrument Panel Compartment Reinforcement Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Airbag Fastener (Qty: 2) Tighten 9 N.m (80 lb in)
3	Inflatable Restraint Instrument Panel Lower Module Replacement - Passenger Side Procedure Ensure that the instrument panel inflatable restraint module is fully deployed before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping . Enable the SIR system. Refer to SIR Disabling and Enabling .
