Intake Manifold Tuning Valve Actuator Replacement
Intake Manifold Tuning Valve Actuator Replacement

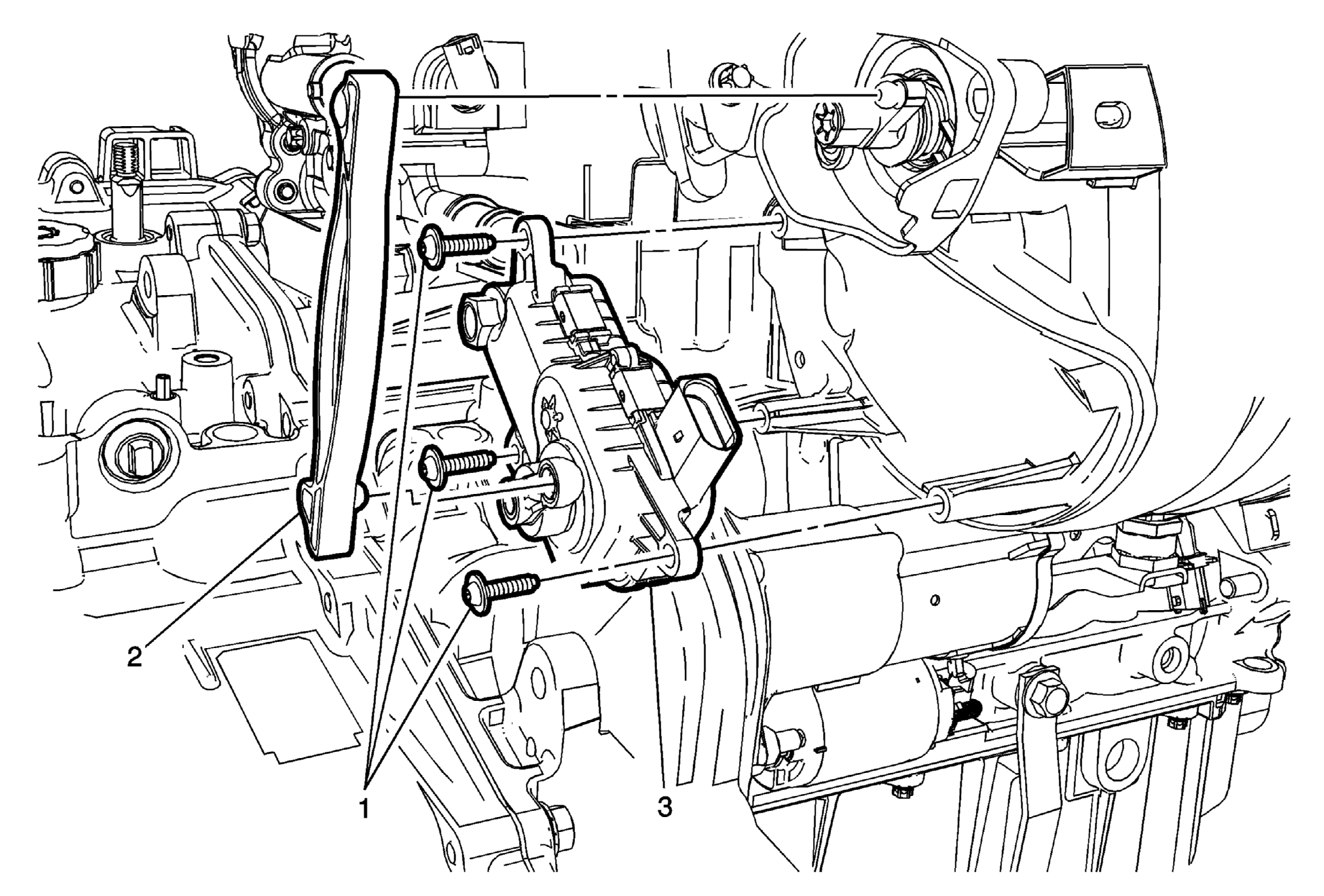

| Callout | Component Name |
|---|---|
| Preliminary Procedure Properly raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Intake Manifold Runner Control Valve Actuator Solenoid Valve Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Intake Manifold Runner Control Valve Actuator Solenoid Linkage |
| 3 | Intake Manifold Runner Control Valve Actuator Solenoid Procedure Disconnect the wiring harness electrical connector from the intake manifold runner control valve actuator solenoid. |
