Installation Procedure

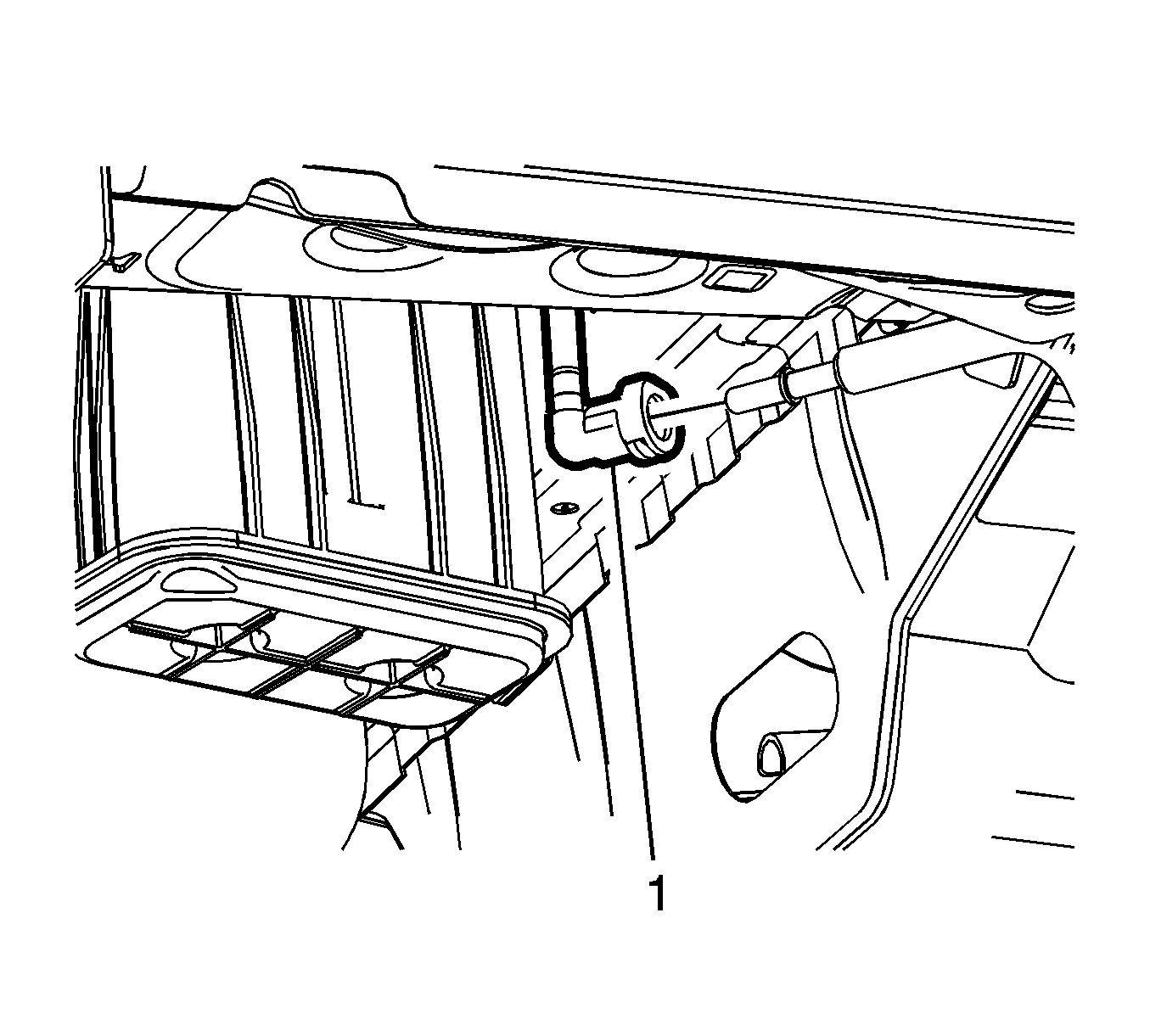

    Fig 1: Evaporative Emission System Hose/Pipe
    GM2496061Courtesy of GENERAL MOTORS COMPANY
  1. Install the evaporative emission pipe.
  2. Connect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .

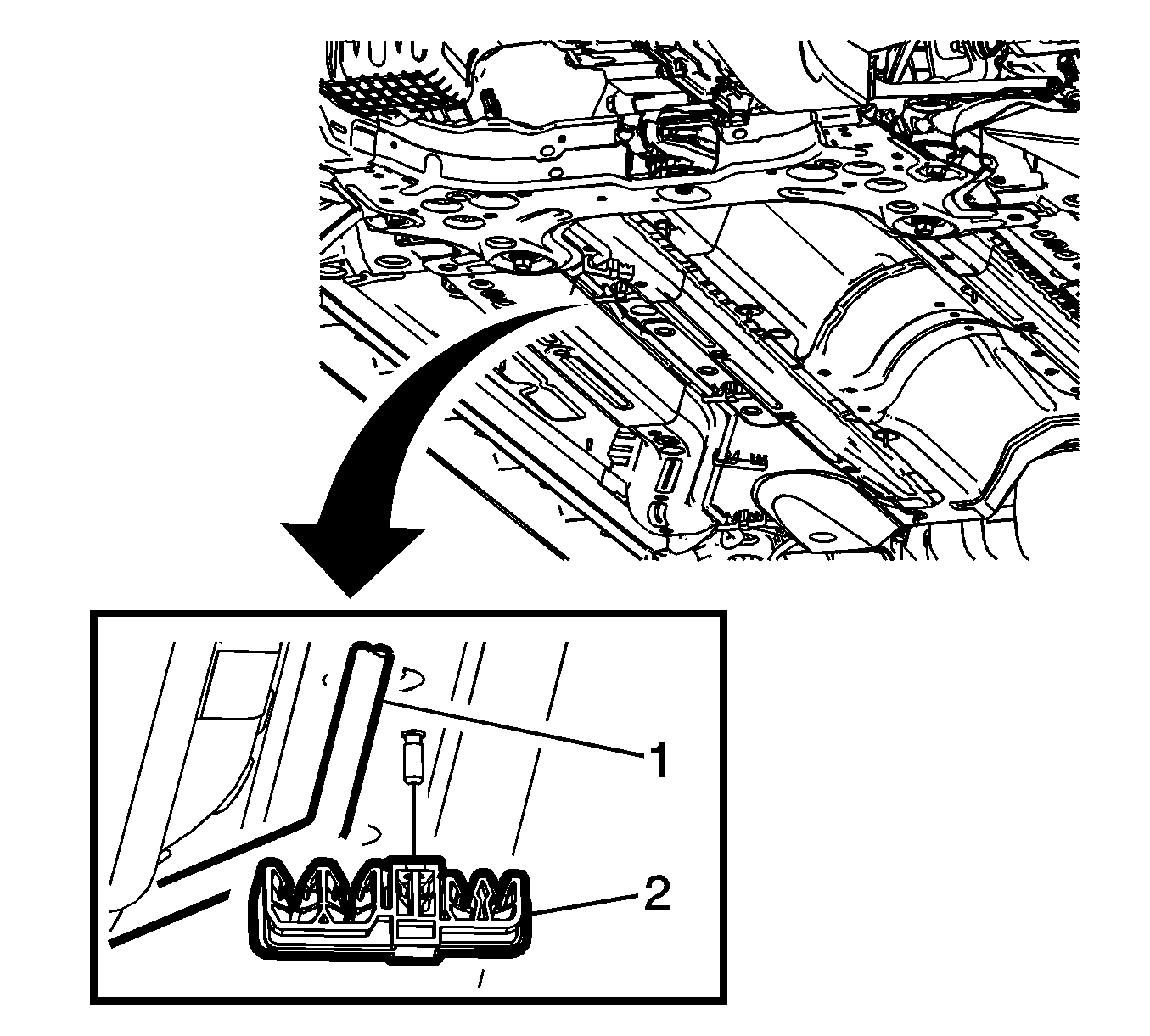

    3. Fig 2: Evaporative Emission System Hose/Pipe & Retainers
    GM2496064Courtesy of GENERAL MOTORS COMPANY
  3. Connect the evaporative emission pipe (1) to the plastic retainers (2).

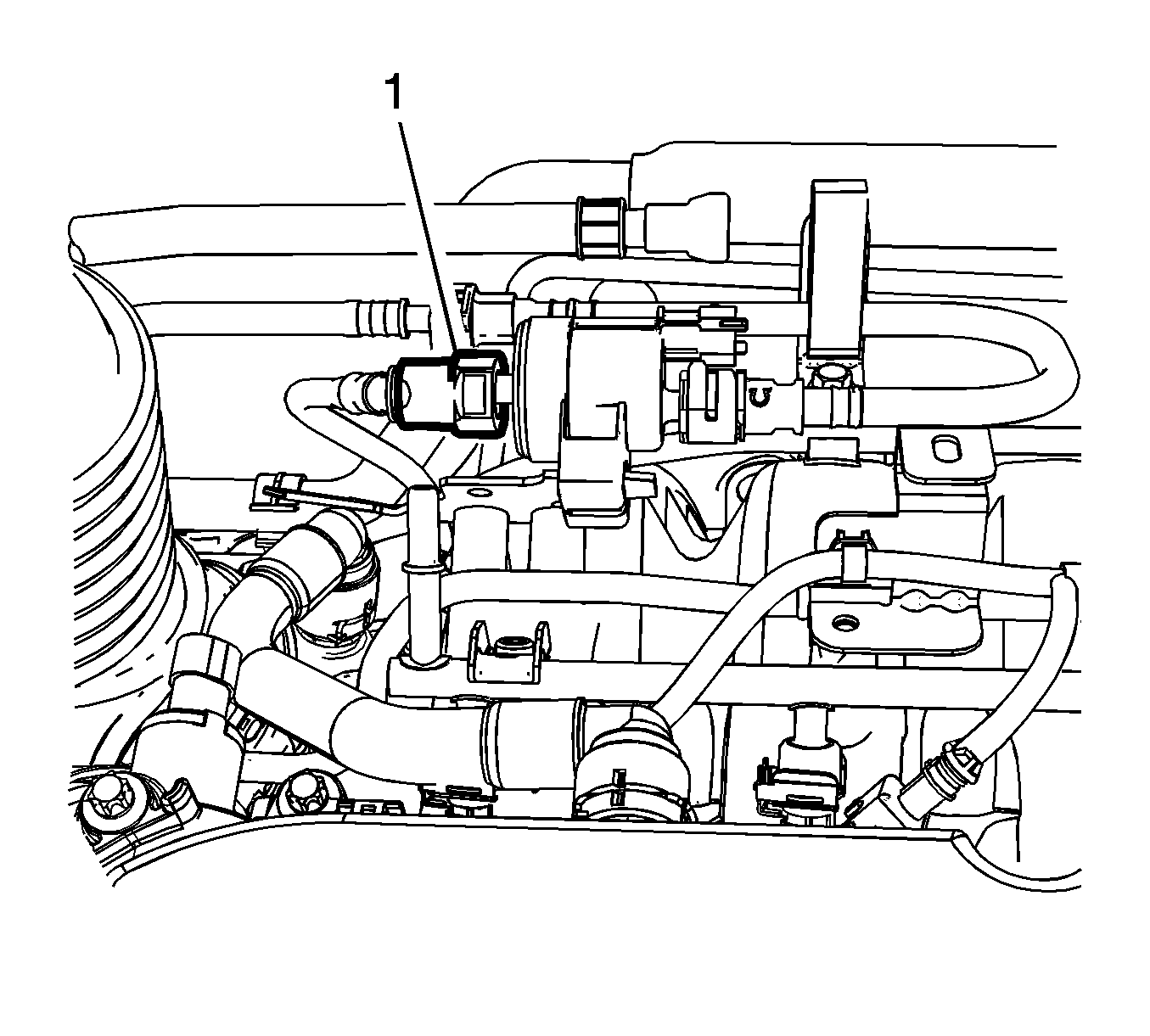

    4. Fig 3: Evaporative Emission System Hose/Pipe & Retainer
    GM2496058Courtesy of GENERAL MOTORS COMPANY
  4. Connect the evaporative emission pipe (2) and install the plastic retainer (1).

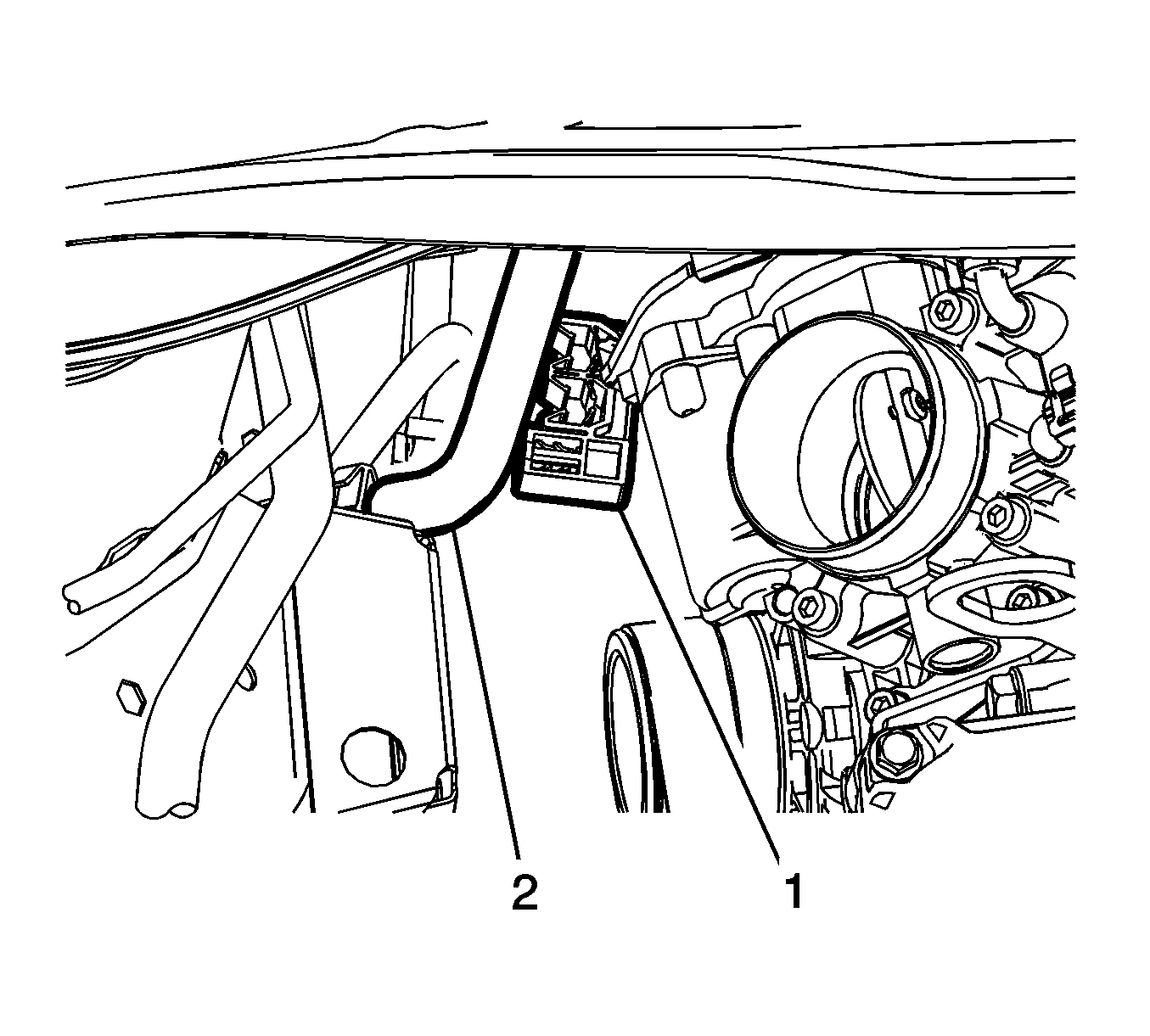

    5. Fig 4: Evaporative Emission System Hose/Pipe
    GM2676473Courtesy of GENERAL MOTORS COMPANY
  5. Connect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .
