Engine Coolant Temperature Sensor Replacement (Water Outlet)

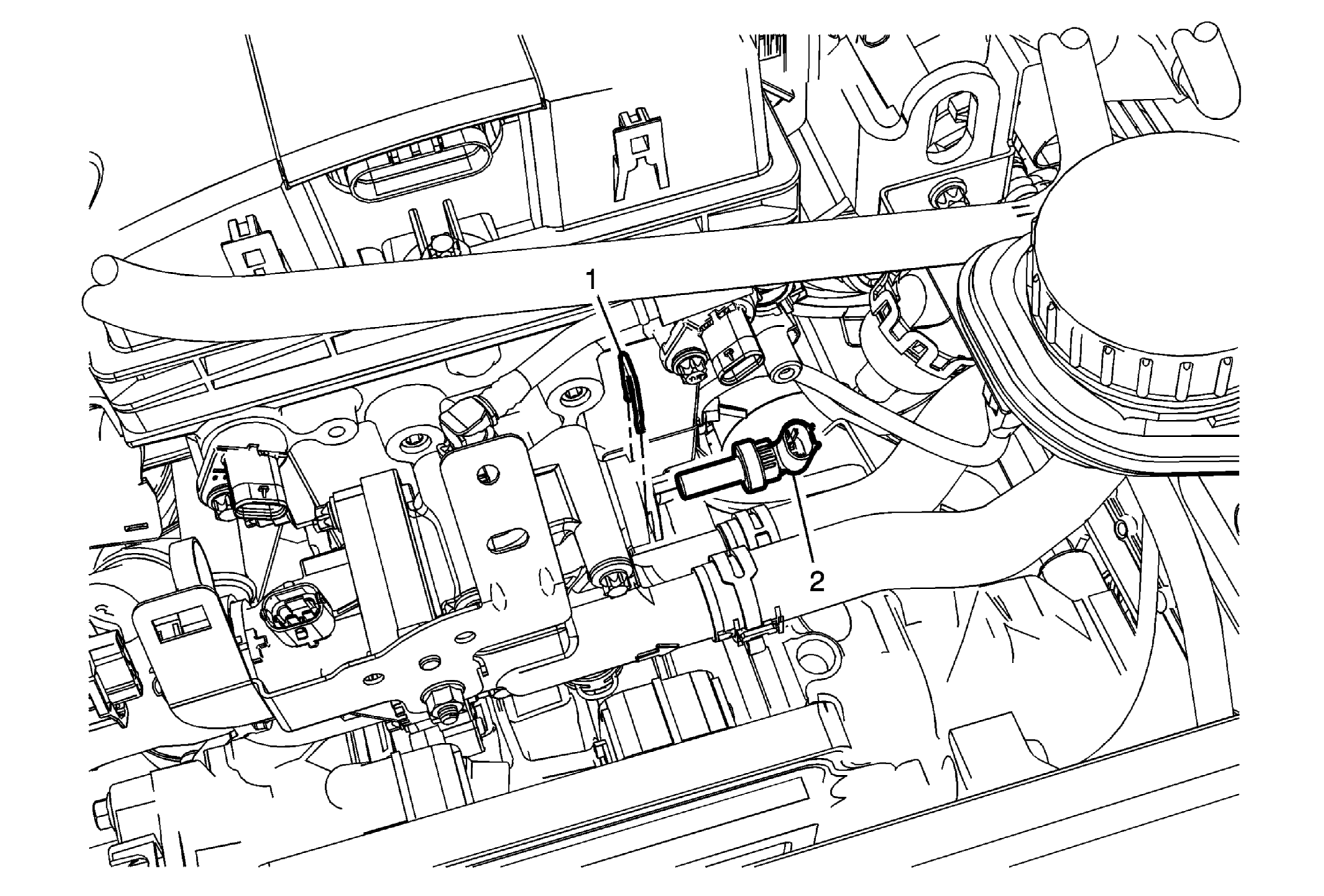

Fig 1: Engine Coolant Temperature Sensor (Water Outlet)
GM2505902Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor Replacement (Water Outlet)

Callout Component Name

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Disconnect the electrical wiring harness connector.
1 Engine Coolant Temperature Sensor Fastener
2 Engine Coolant Temperature Sensor
