Exhaust Heat Shield Replacement

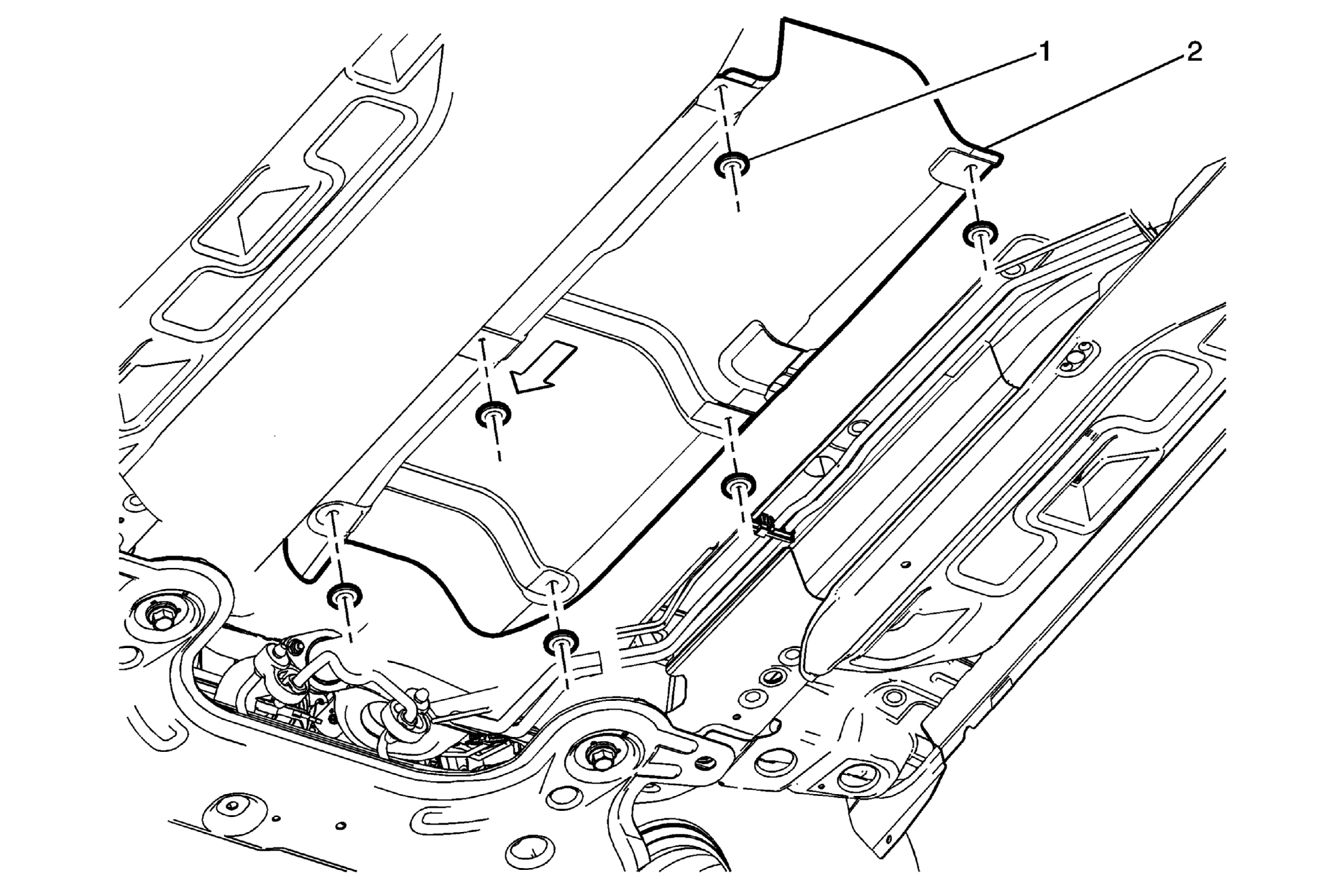

Fig 1: Exhaust Heat Shield
GM2494821Courtesy of GENERAL MOTORS COMPANY
Exhaust Heat Shield Replacement

Callout Component Name
Preliminary Procedure
Disconnect the exhaust system hangers and allow the exhaust system to rest on the rear axle.
1 Exhaust Heat Shield Fastener (Qty: 6)
2 Exhaust Heat Shield
