Electrical Component Locator - Door Component Views
>>
Door Component Views
>>
Driver Door Components
Driver Door Components
Driver Door Components
Component Name
Callout
A23D Door Latch Assembly - Driver
1
A9A Outside Rearview Mirror - Driver (DG6)
2
S52 Outside Rearview Mirror Switch (DG6)
3
P19AG Speaker - Left Front Door
4
M74D Window Motor - Driver (AXG)
5
S79D Window Switch - Driver (AXG)
6

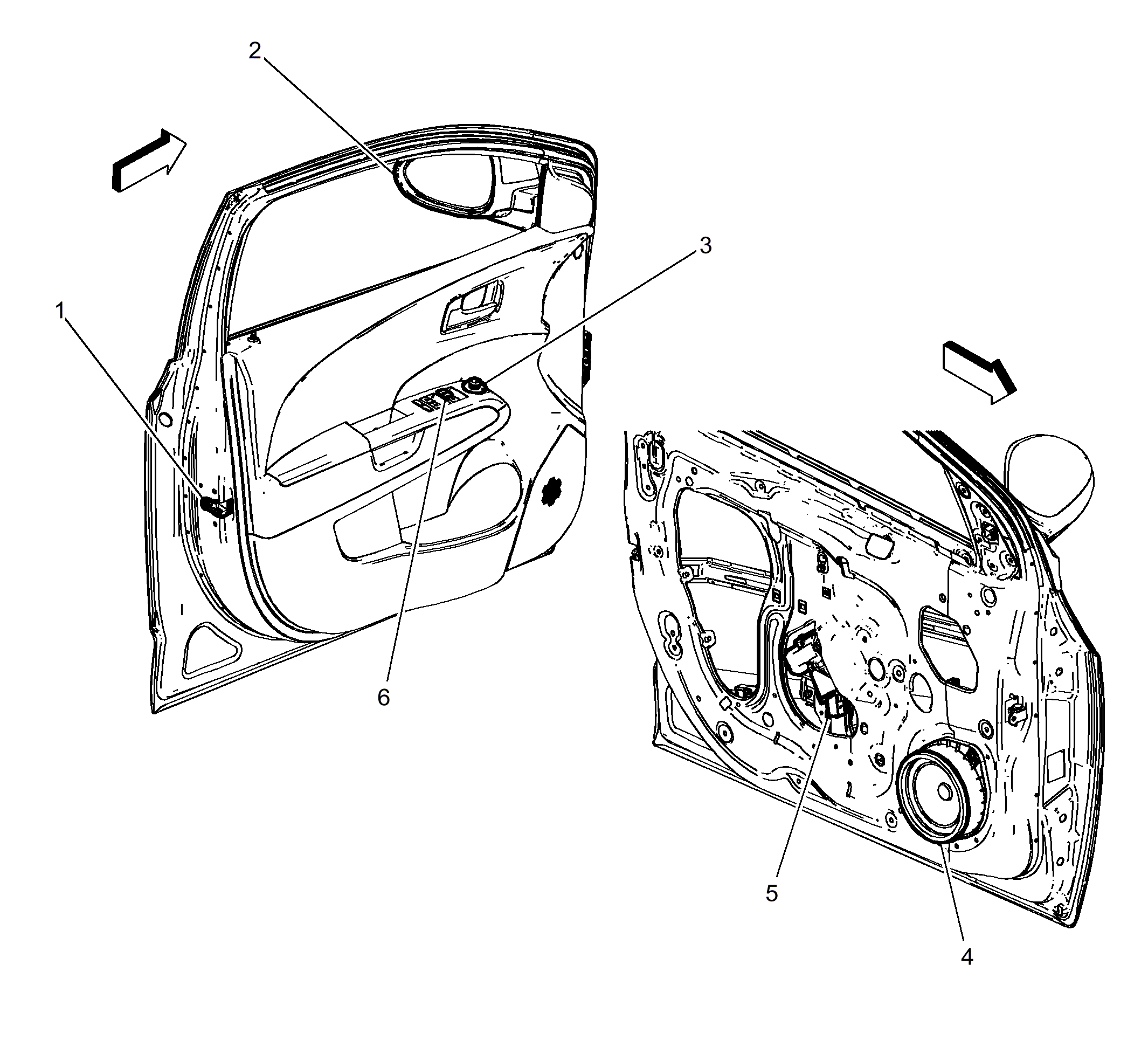

Fig 1: Driver Door Components
Courtesy of GENERAL MOTORS COMPANY
