Generator Pulley Replacement (LUV)
Generator Pulley Replacement (LUV)

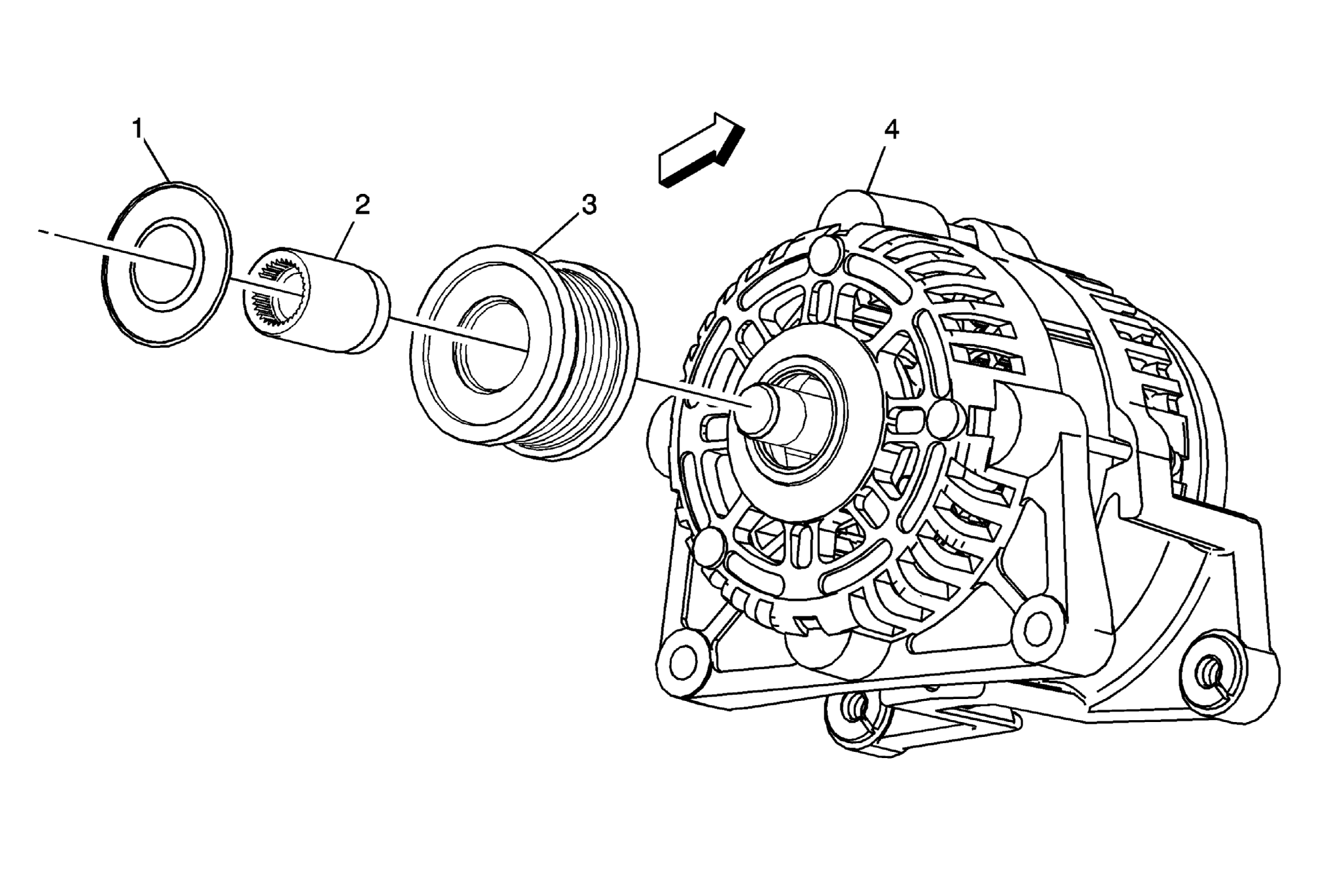

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the generator. Refer to Generator Replacement (LUV) , Generator Replacement (LUW) . |
|
| 1 | Generator Pulley Nut Cap |
| 2 | Generator Pulley Nut
CAUTION:
Refer to Fastener Caution . Procedure Remove the generator pulley nut by using EN-6372 counterhold. Tighten 90 N.m (66 lb ft) Special Tools EN-6372 Counterhold For equivalent regional tools, refer to Special Tools . |
| 3 | Generator Pulley |
| 4 | Generator |
