Ignition and Start Switch Replacement

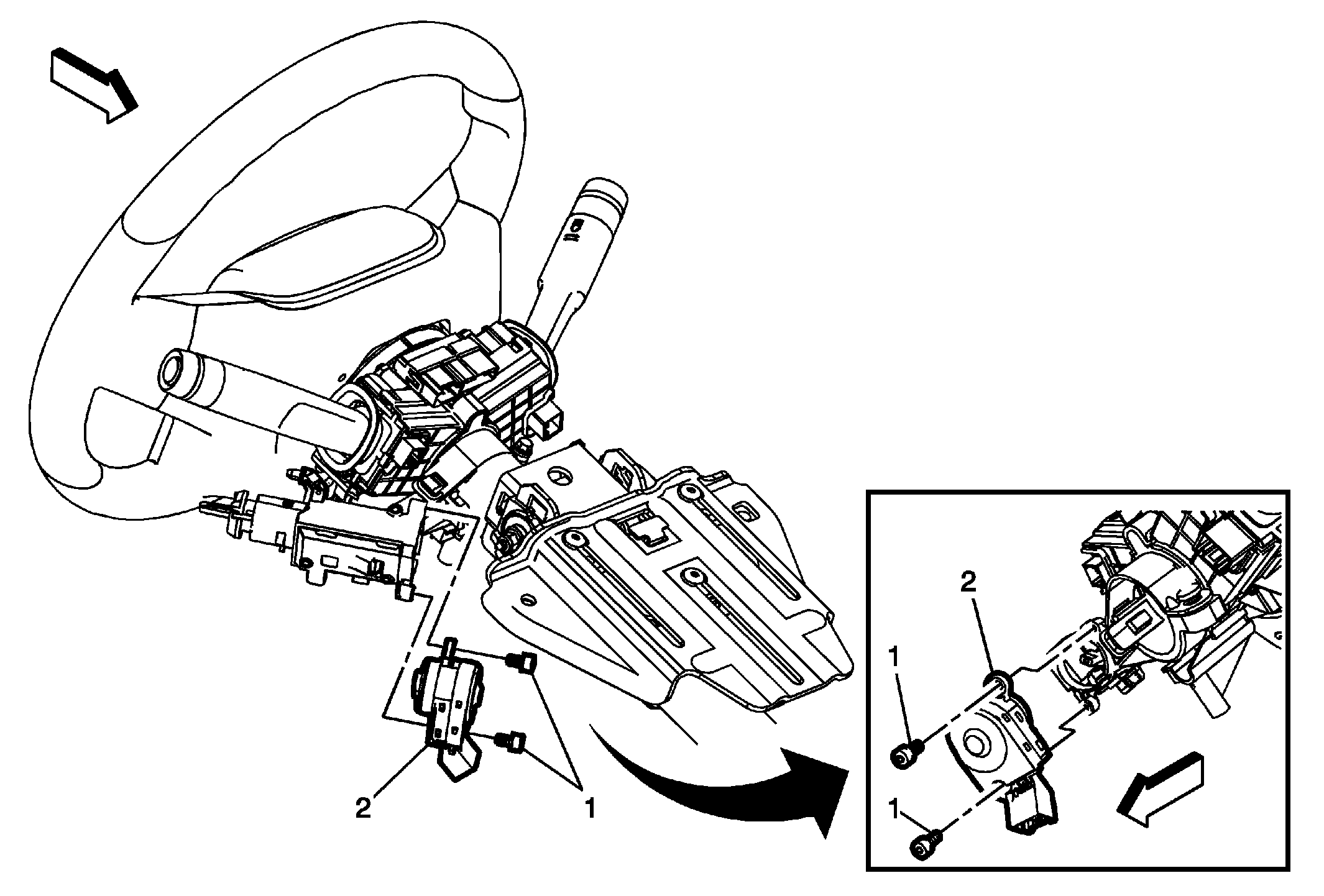

Fig 1: Ignition and Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the steering column. Refer to Steering Column Replacement .
1	Ignition and Start Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Ignition and Start Switch Procedure Disconnect any electrical connectors as necessary.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the steering column. Refer to Steering Column Replacement .

Ignition and Start Switch Bolt (Qty: 2)

CAUTION:

Ignition and Start Switch
Procedure
Disconnect any electrical connectors as necessary.
