Headliner Components

Headliner Components

Component Name Callout
E37A Dome/Reading Lamps 1
B24 Cellular Phone Microphone (UE1) 2
S72 Sunroof Switch (CF5) 3
K77 Remote Control Door Lock Receiver 4
K61 Sunroof Control Module (CF5) 5
A10 Inside Rearview Mirror (UE1) 6

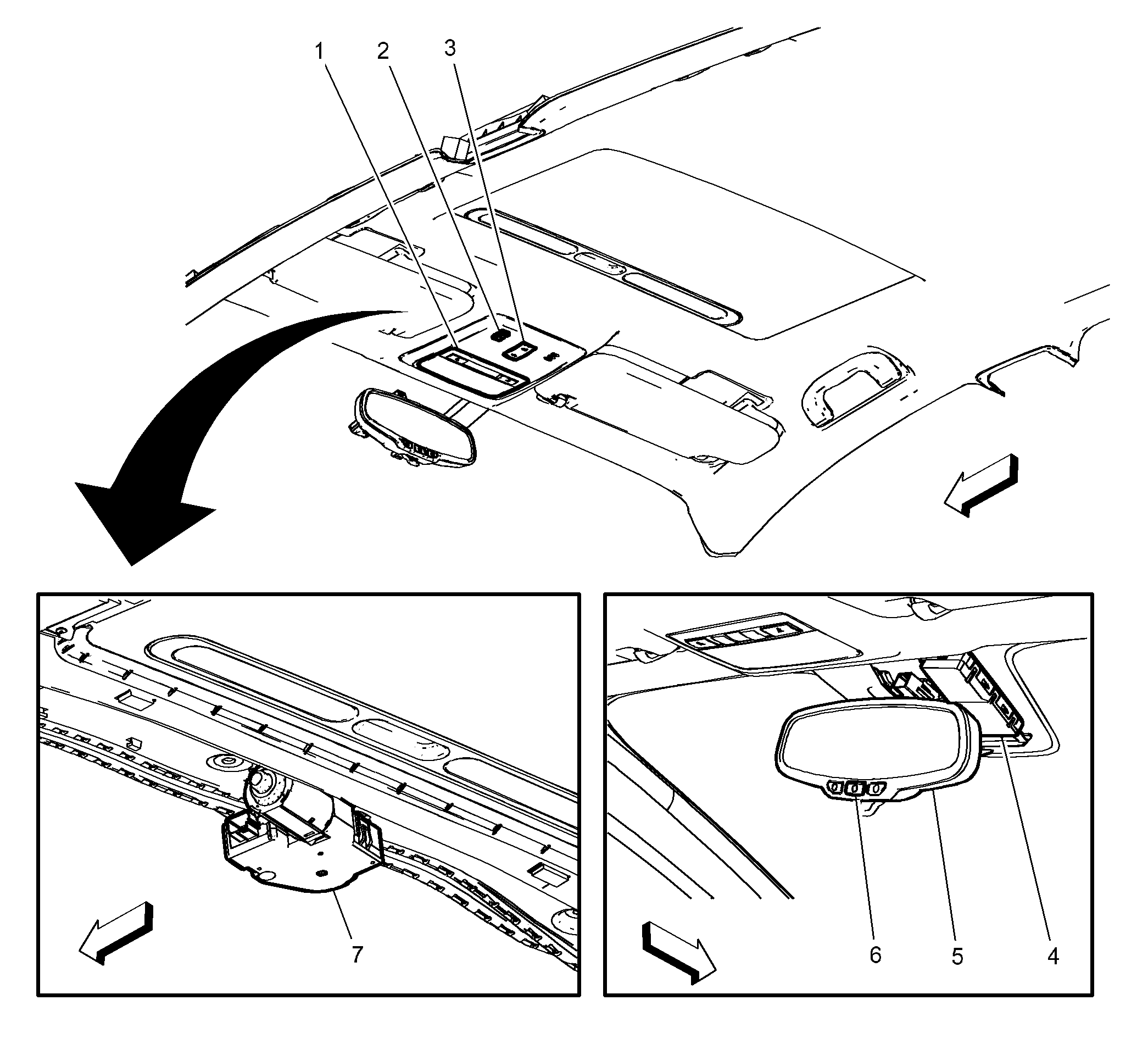

Fig 1: Headliner Components
GM2540406Courtesy of GENERAL MOTORS COMPANY
