Sunroof Window Replacement

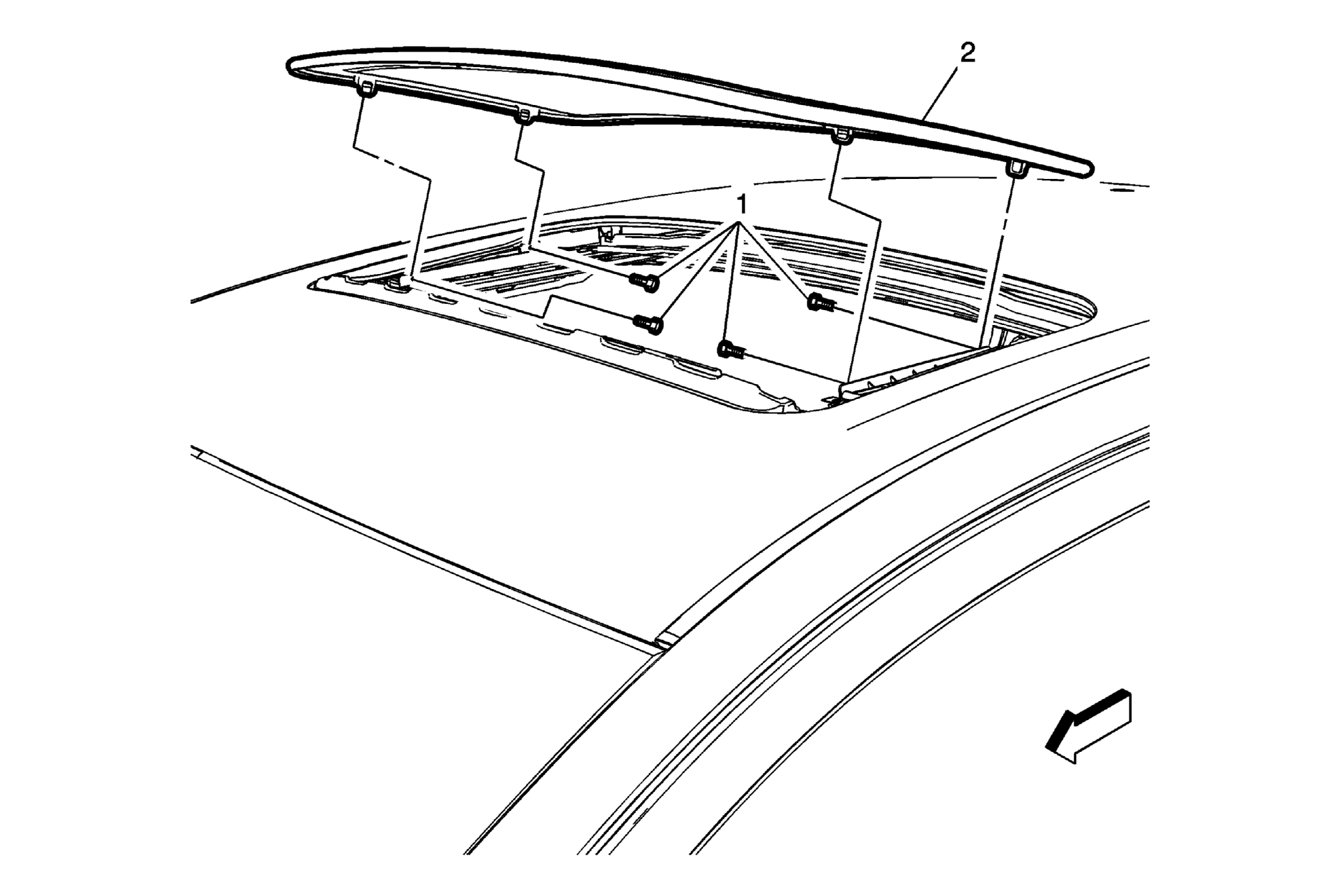

Fig 1: Sunroof Window & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Window Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Sunroof Window Procedure Turn the ignition on. Slide the sunshade to the full rearward position. Move the sunroof window to the vent position. Verify the proper operation of the sunroof. Refer to Sunroof Window Height and Opening Fit Adjustment .

Callout

Component Name

Sunroof Window Bolt (Qty: 4)

CAUTION:

Tighten
5 N.m (44 lb in)

Sunroof Window

Procedure

Turn the ignition on.
Slide the sunshade to the full rearward position.
Move the sunroof window to the vent position.
Verify the proper operation of the sunroof. Refer to Sunroof Window Height and Opening Fit Adjustment .
