Sunroof Switch Replacement

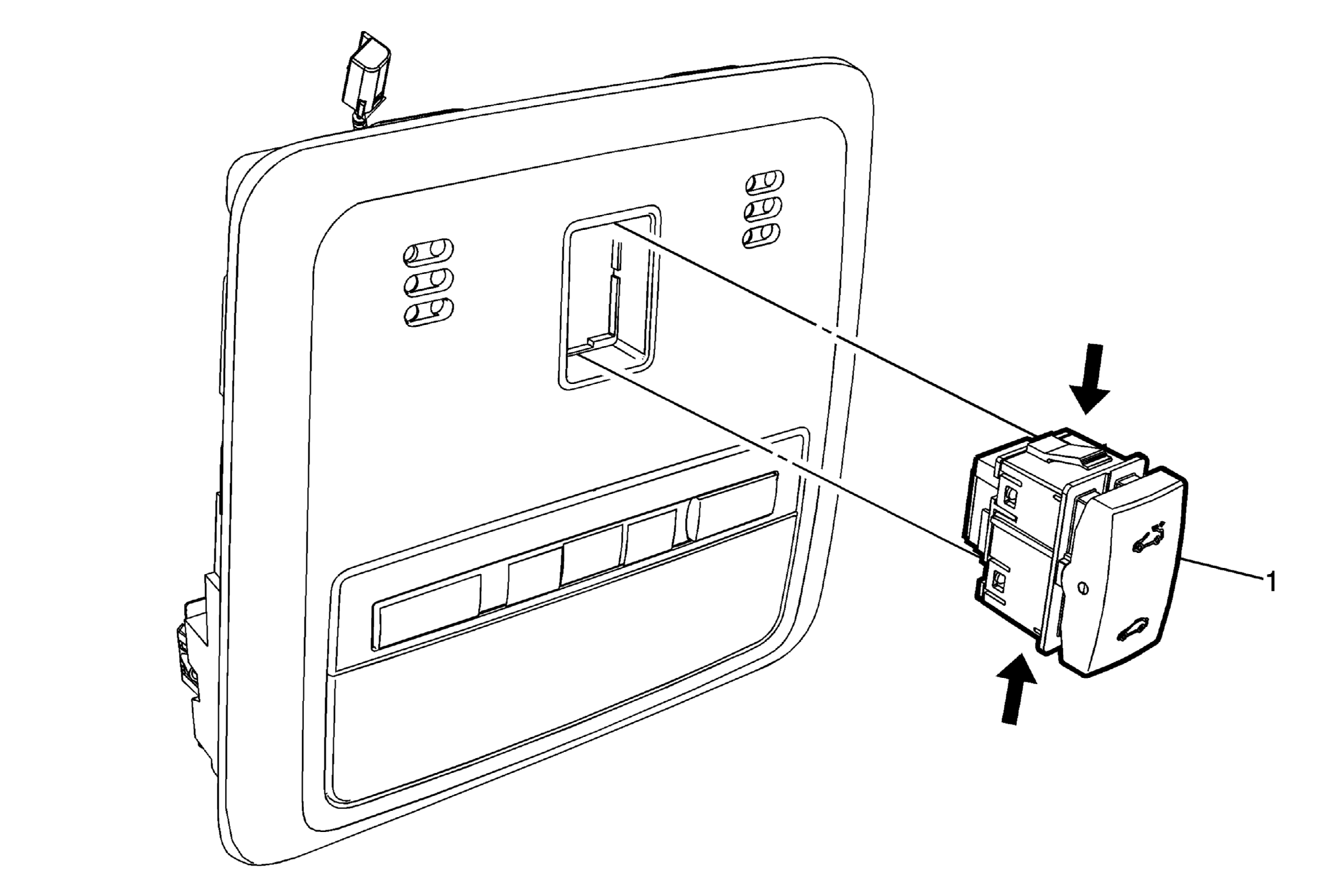

Fig 1: Sunroof Switch
GM2674486Courtesy of GENERAL MOTORS COMPANY
Sunroof Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the dome lamp bezel. Refer to Dome Lamp Bezel Replacement .
1 Sunroof Switch

Procedure

  1. Disconnect electrical connector.
  2. Depress tabs to release switch.
