Front Compartment Front Insulator Cover Replacement
Front Compartment Front Insulator Cover Replacement

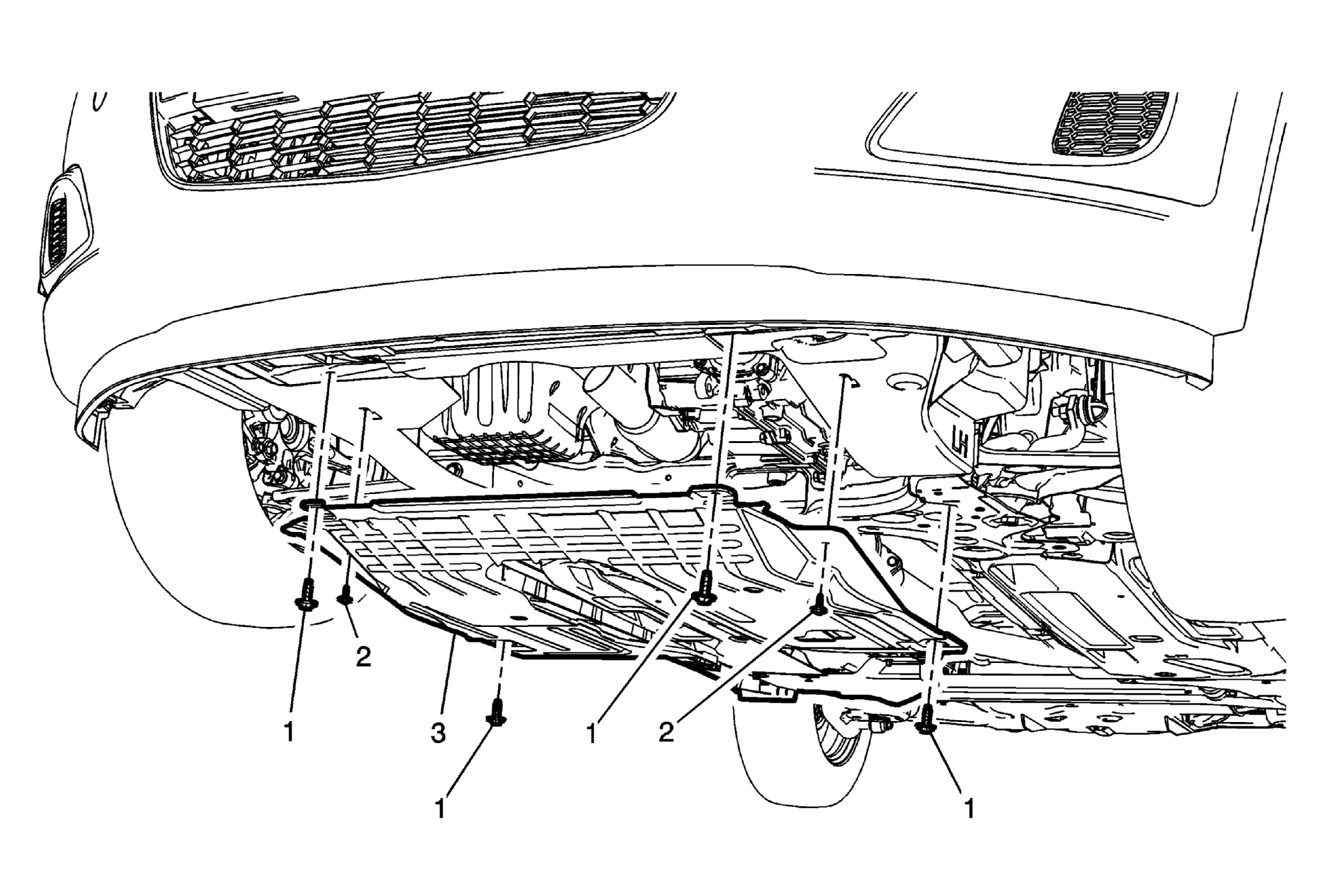

| Callout | Component Name |
|---|---|
| 1 | Front Compartment Front Insulator Cover Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Front Insulator Cover Bolt (Qty: 4) Tighten 22 N.m (16 lb ft) |
| 3 | Front Compartment Front Insulator Cover |
