Orlando LTZ, Standard Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Door Lock System And Release Systems
>>
Wiring Schematics
>>
Release Systems Wiring Schematics
>>
Liftgate Release
Liftgate Release

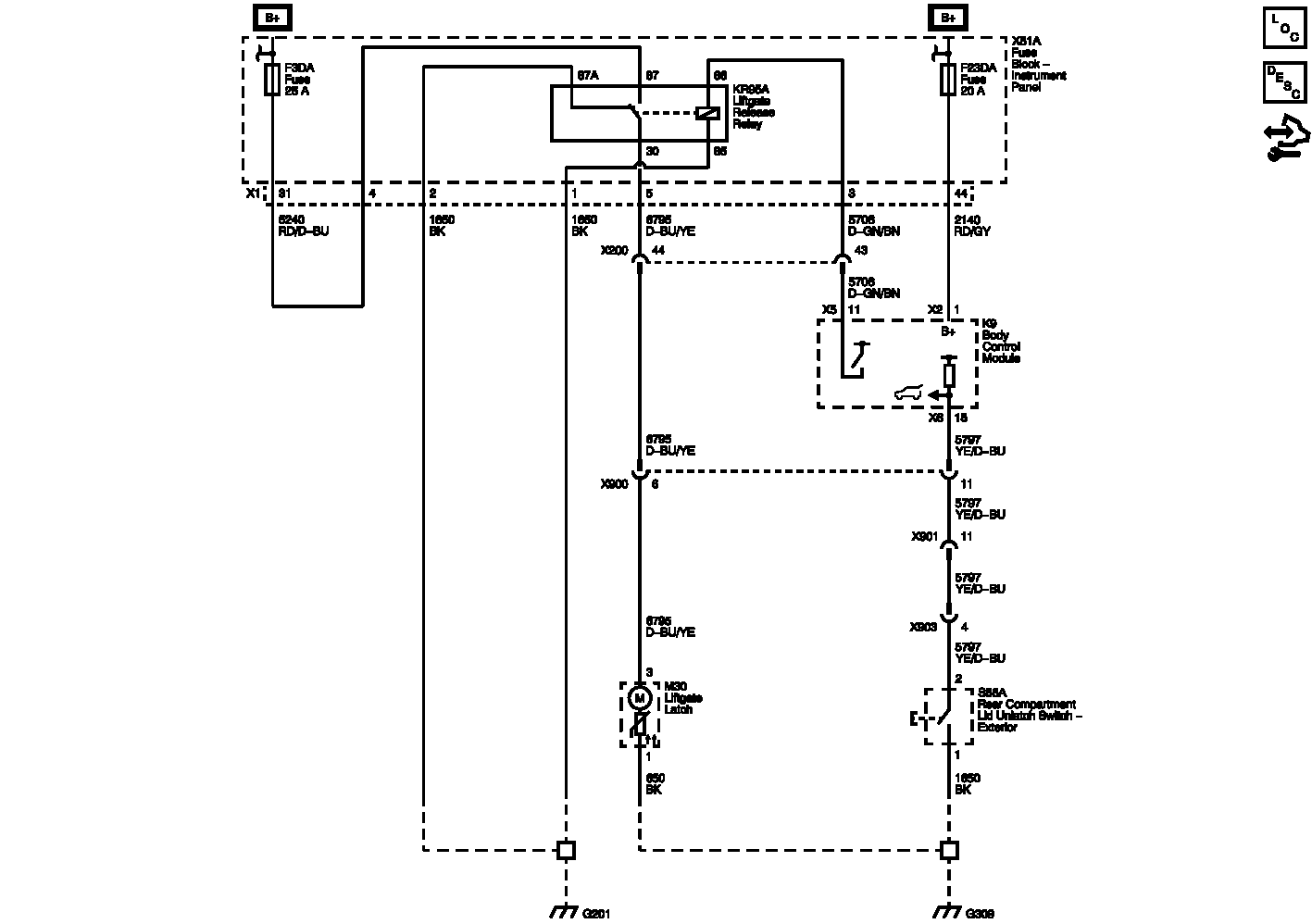

Fig 1: Liftgate Release Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
