Serial Data Communications Enable

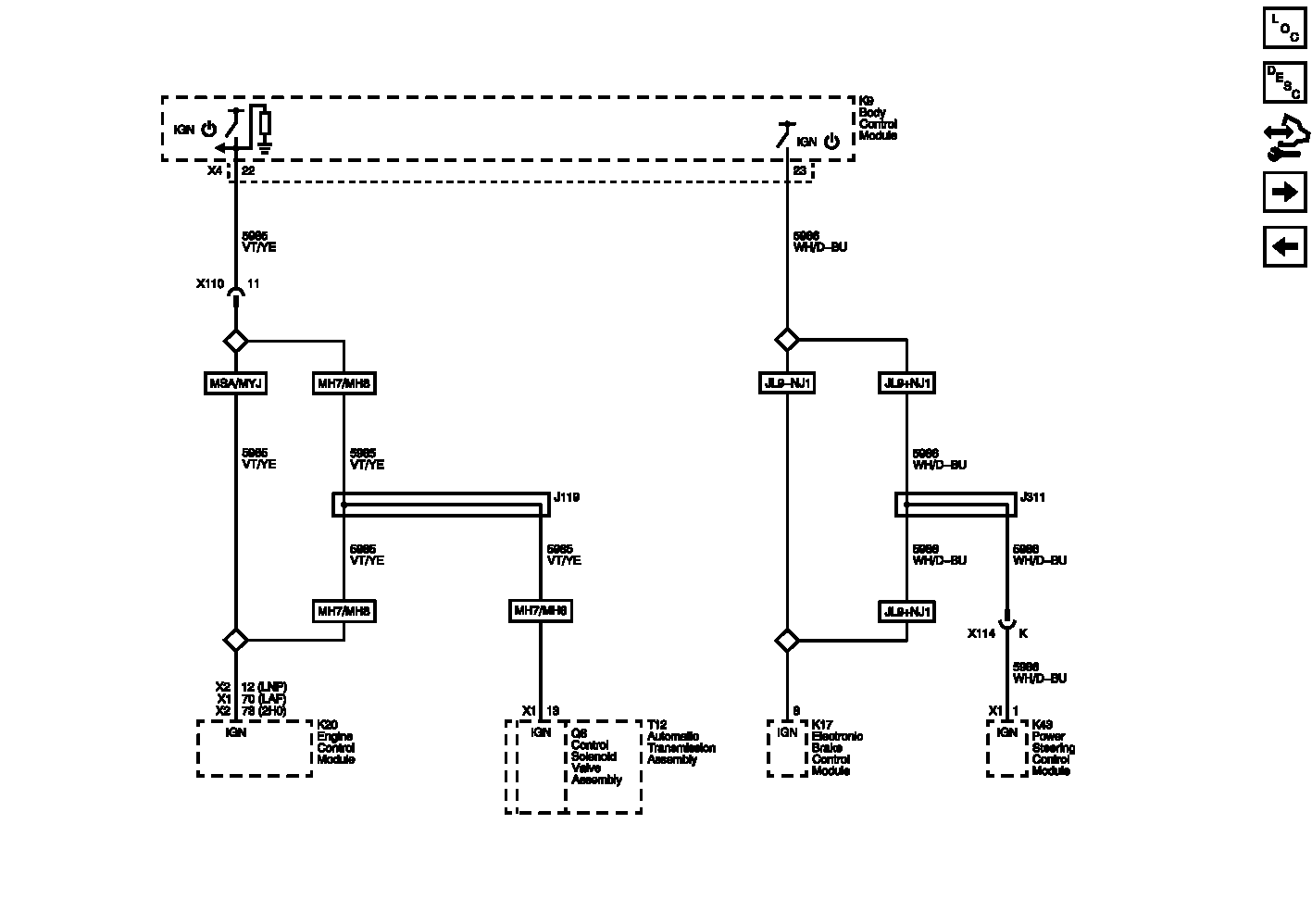

Fig 1: Serial Data Communications Enable Wiring Schematic

GM2564591

Courtesy of GENERAL MOTORS COMPANY
