Power Steering Gear Outlet Pipe/Hose Replacement

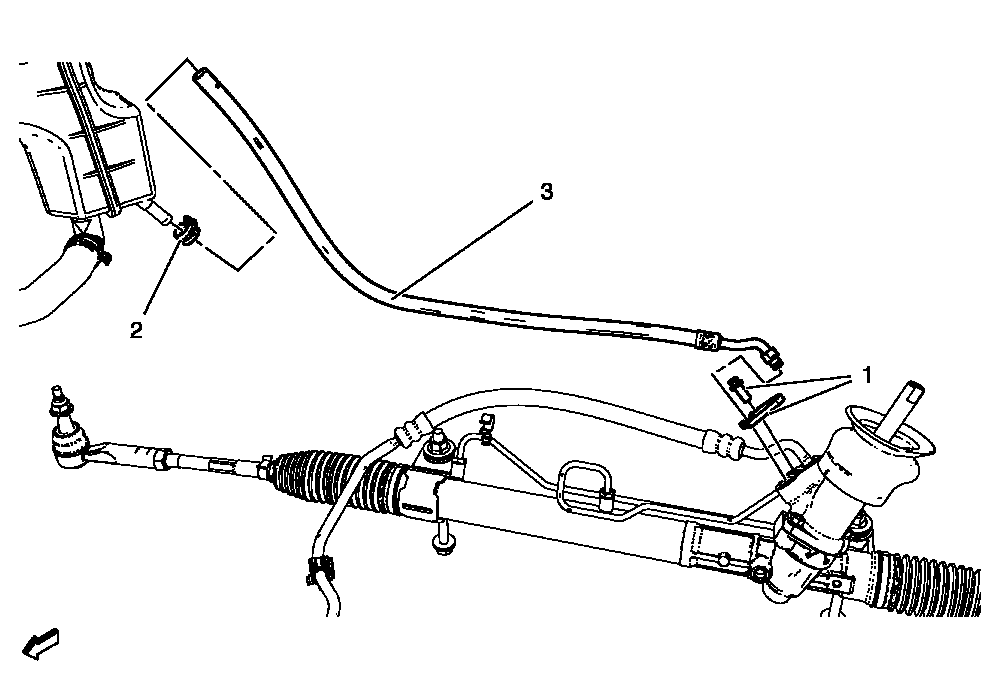

Fig 1: Power Steering Gear Outlet Pipe/Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove as much power steering fluid from the power steering fluid reservoir as possible. Place drain pans under the vehicle as needed.
1	Power Steering Gear Inlet Hose Bolt CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in).
2	Hose Clamp Procedure Compress the power steering fluid reservoir outlet hose clamp from the power steering fluid reservoir.
3	Power Steering Gear Outlet Hose Procedure Fill and bleed the power steering system. Refer to Power Steering System Bleeding . Clean any excess power steering fluid from the vehicle.
