Manual Transmission - F40
>>
Component Locator
>>
Manual Transmission Component Views
>>
Transmission Housing Components
Transmission Housing Components

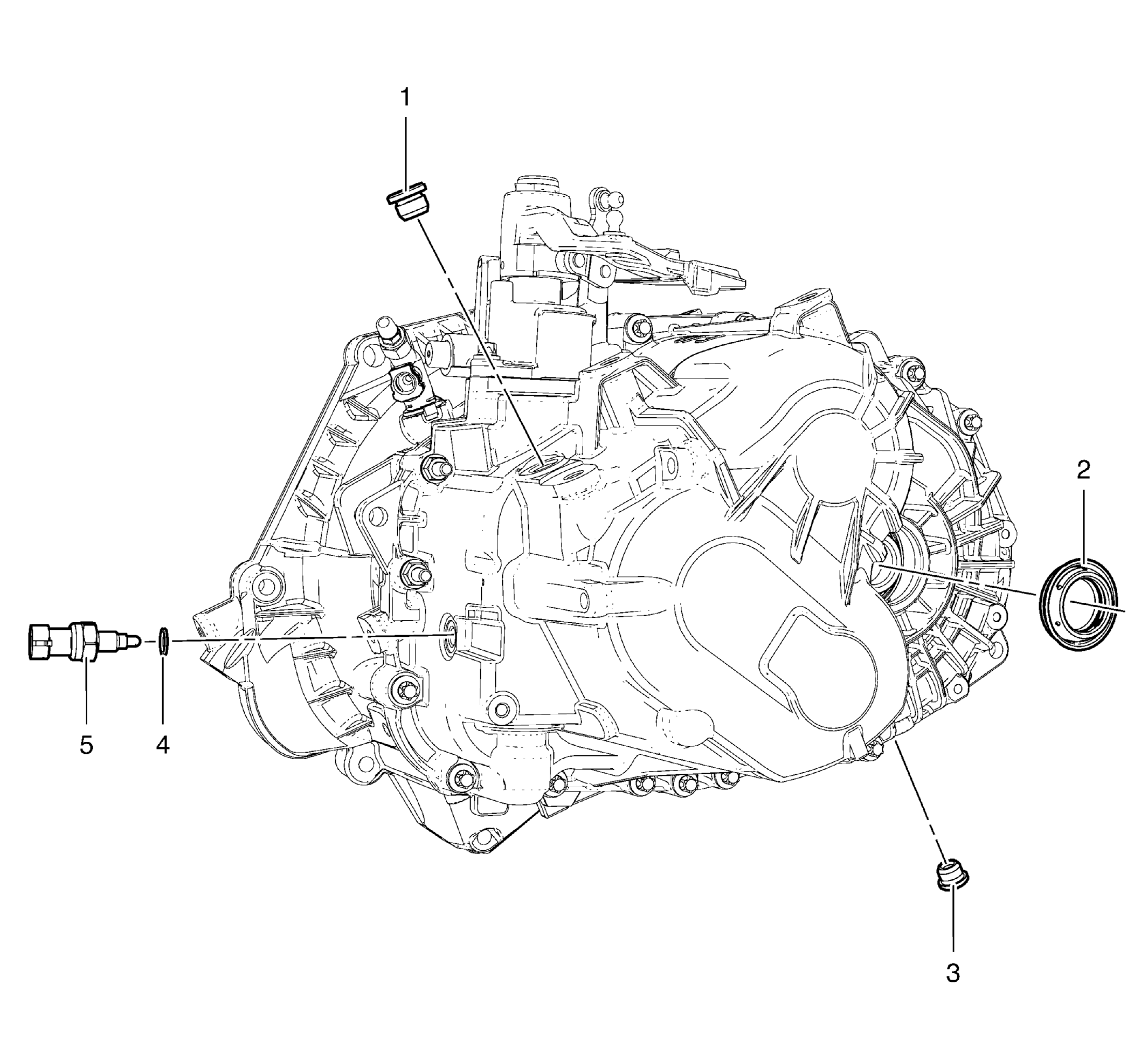

Fig 1: Transmission Housing Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Transmission Oil Filler Plug
2
Front Wheel Drive Shaft Oil Seal
3
Transmission Oil Drain Plug
4
Backup Lamp Switch Washer
5
Backup Lamp Switch
