Roof Side Rail Inflatable Restraint Module Replacement

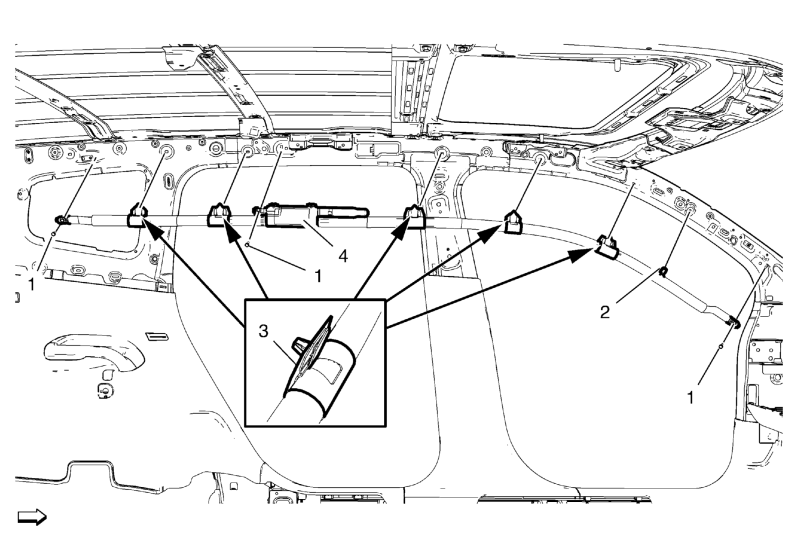

Fig 1: Roof Side Rail Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning in the Preface section. WARNING: Refer to SIR Warning in the Preface section. Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (without Sunroof) , Headlining Trim Panel Replacement (with Sunroof) .
1	Roof Side Rail Inflatable Restraint Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9.5 N.m (84 lb in)
2	Roof Side Rail Inflatable Restraint Module Clip
3	Roof Side Rail Inflatable Restraint Module Retainer (Qty: 5) Procedure Insert suitable pliers into the holes on the retainer. Compress the retainer tabs inward and pull the retainer to disengage from the vehicle.
4	Roof Side Rail Inflatable Restraint Module Procedure Disconnect the roof side rail inflatable restraint module electrical connector. TIP: The bolts, clip, and the push in retainers are an integral part of the module and should remain with the module.
