Inflatable Restraint Instrument Panel Module Indicator Replacement
Inflatable Restraint Instrument Panel Module Indicator Replacement

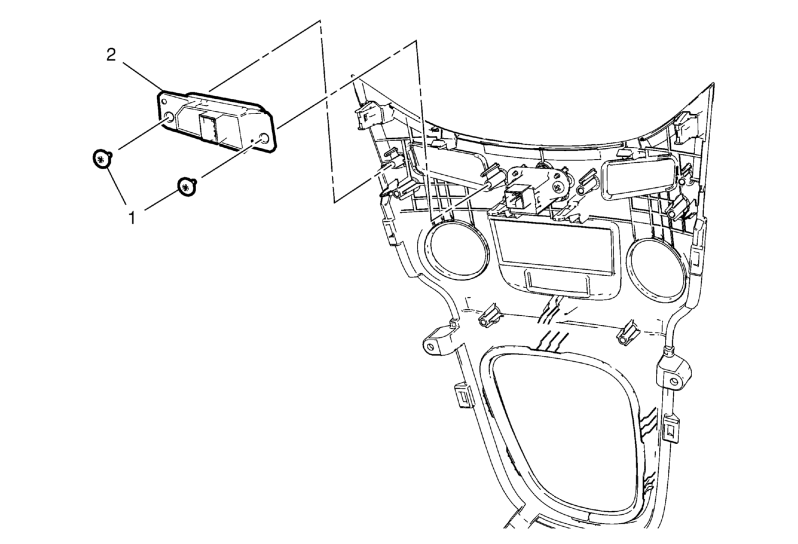

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the instrument panel lower molding. Refer to Instrument Panel Lower Molding Replacement . |
|
| 1 | Inflatable Restraint Instrument Panel Module Indicator Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Inflatable Restraint Instrument Panel Module Indicator Procedure Disconnect the electrical connector. |
