Inflatable Restraint Instrument Panel Compartment Module Disable Switch Replacement

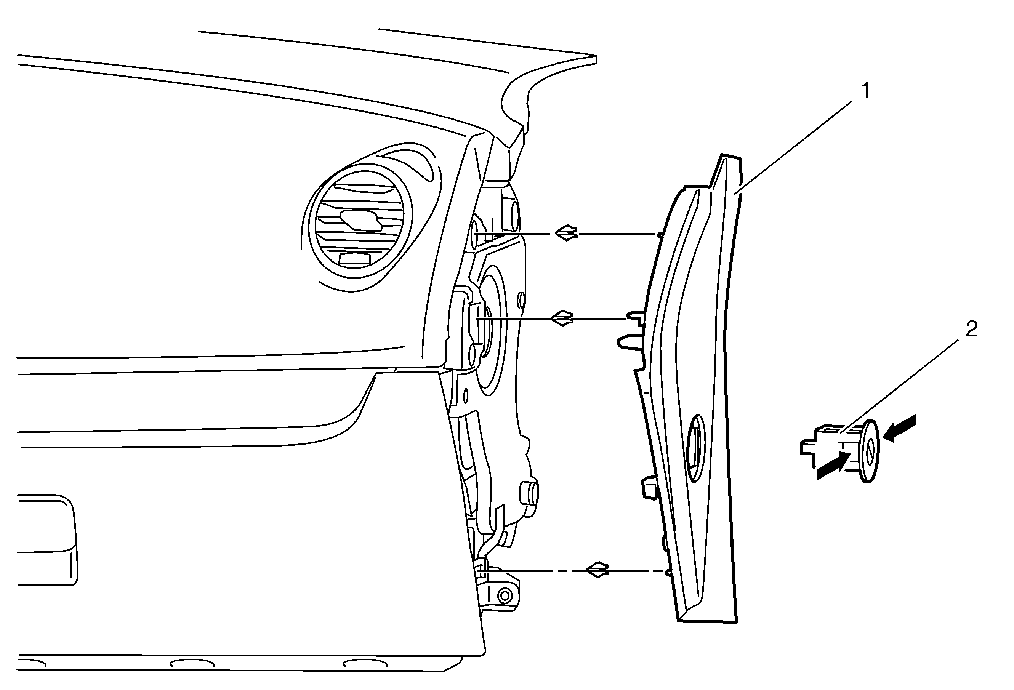

Fig 1: Inflatable Restraint Instrument Panel Compartment Module Disable Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Outer Trim Cover TIP: Use a flat-bladed plastic trim tool to aid in the removal of the outer trim cover.
2	Inflatable Restraint Instrument Panel Compartment Module Disable Switch Procedure Disconnect the electrical connection. Release the inflatable restraint module disable switch.

Callout

Component Name

Instrument Panel Outer Trim Cover
TIP: Use a flat-bladed plastic trim tool to aid in the removal of the outer trim cover.

Inflatable Restraint Instrument Panel Compartment Module Disable Switch

Procedure
