Radiator Upper Bracket Replacement

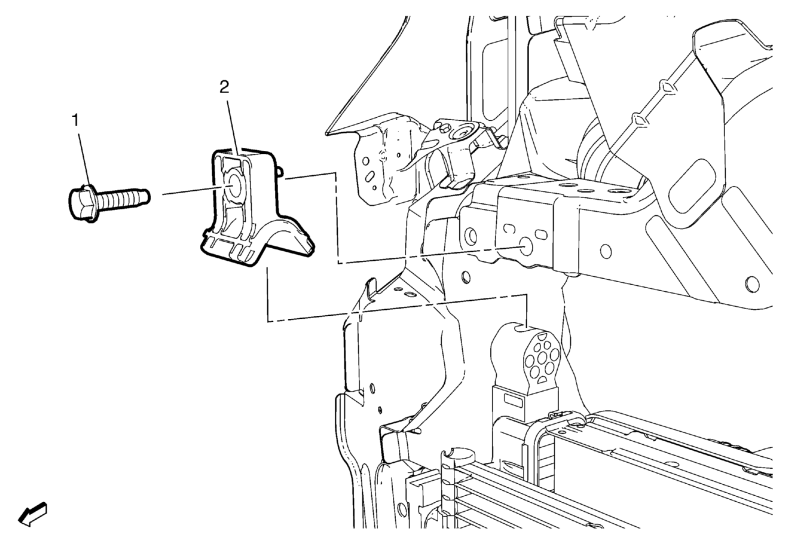

Fig 1: Radiator Upper Bracket
GM2512551Courtesy of GENERAL MOTORS COMPANY
Radiator Upper Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation .
1 Radiator Support Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb in)
2 Radiator Support Bracket
Procedure
Pull the radiator forward until the bracket is accessible.
