Sunroof Component Views: Sunroof

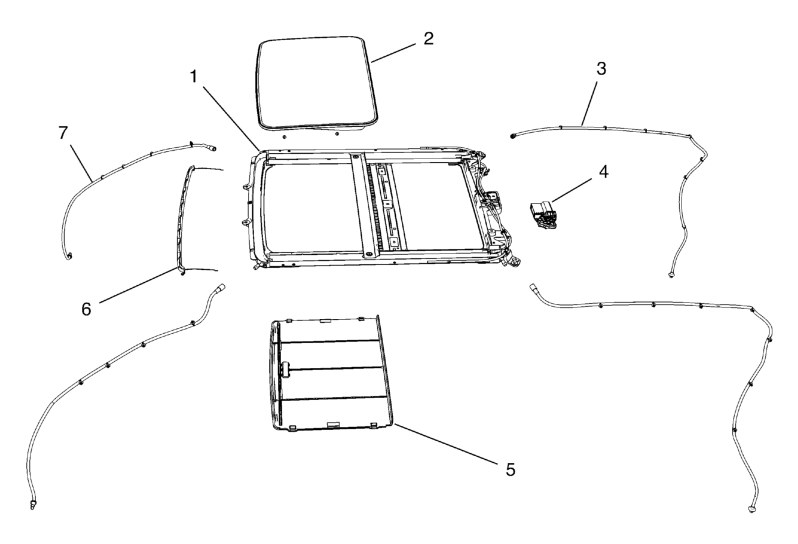

Fig 1: Sunroof Components
GM2506321Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Sunroof Frame
2 Sunroof Window
3 Sunroof Housing Rear Drain Hose
4 Sunroof Window Motor
5 Sunroof Sunshade
6 Sunroof Air Deflector
7 Sunroof Housing Front Drain Hose
