Instrument Panel Inflatable Restraint Module Housing Side Bracket Replacement

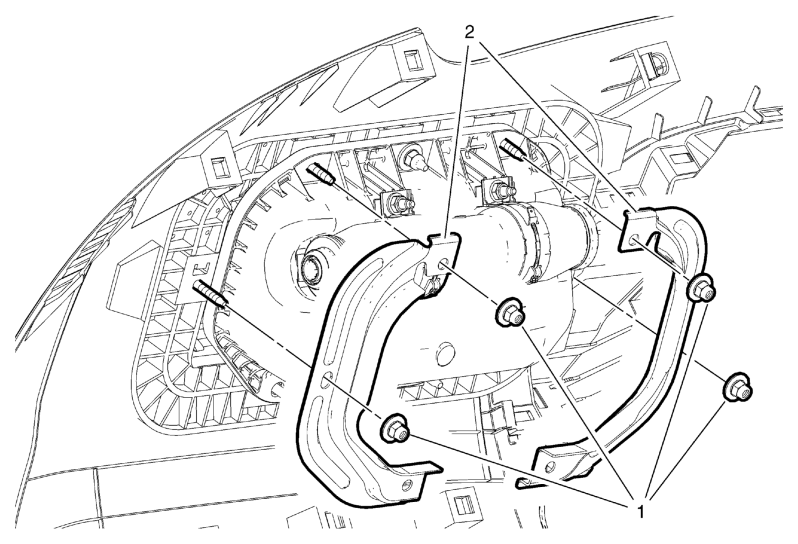

Fig 1: Instrument Panel Inflatable Restraint Module Housing Side Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint instrument panel module inner bracket. Refer to Inflatable Restraint Instrument Panel Module Inner Bracket Replacement .
1	Instrument Panel Inflatable Restraint Module Housing Side Bracket Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Instrument Panel Inflatable Restraint Module Housing Side Bracket
