Instrument Panel Assembly Replacement

Preliminary Procedures

1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove the front floor front console. Refer to Front Floor Front Console Replacement .
3. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
4. Remove the instrument panel molding. Refer to Instrument Panel Molding Replacement - Driver Side .
5. Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
6. Remove the instrument cluster. Refer to Instrument Cluster Replacement .
7. Remove the radio assembly. Refer to Radio Replacement .
8. Remove both windshield garnish moldings. Refer to Windshield Garnish Molding Replacement .
9. Remove the multimedia player interface module. Refer to Multimedia Player Interface Module Replacement .
10. Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .

Procedure

1. Disconnect the wiring harness from the instrument panel assembly.

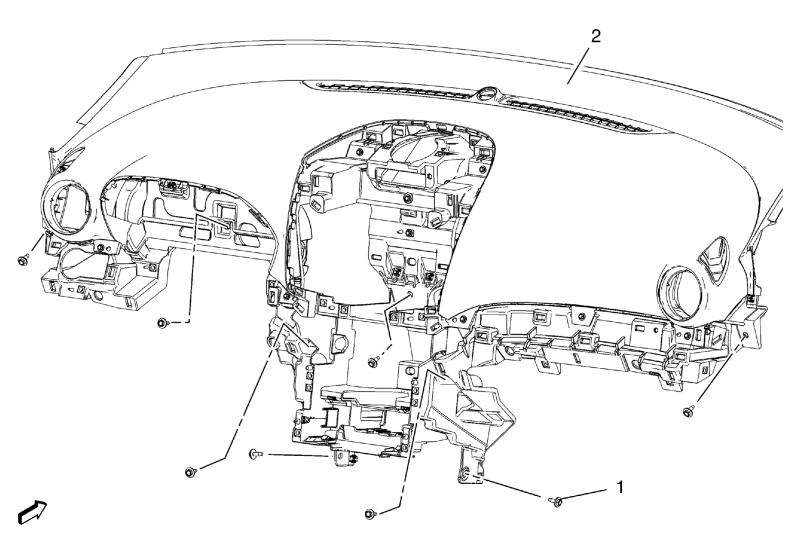

2. With the aid of an assistant, remove the instrument panel assembly from the vehicle.
3. If replacing the instrument panel assembly, transfer all necessary components.
