Hazard Warning Switch Replacement

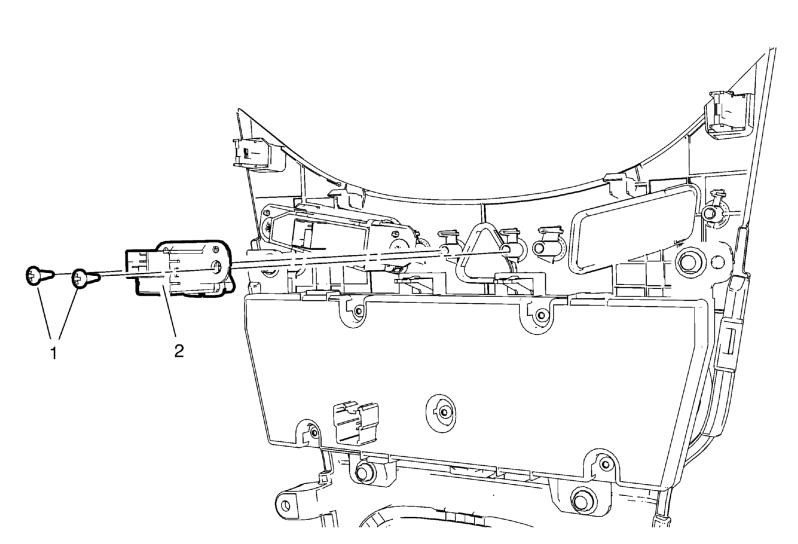

Fig 1: Hazard Warning Switch
GM2372670Courtesy of GENERAL MOTORS COMPANY
Hazard Warning Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel lower molding. Refer to Instrument Panel Lower Molding Replacement .
1 Hazard Warning Switch Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Hazard Warning Switch
Procedure
Disconnect electrical connector.
