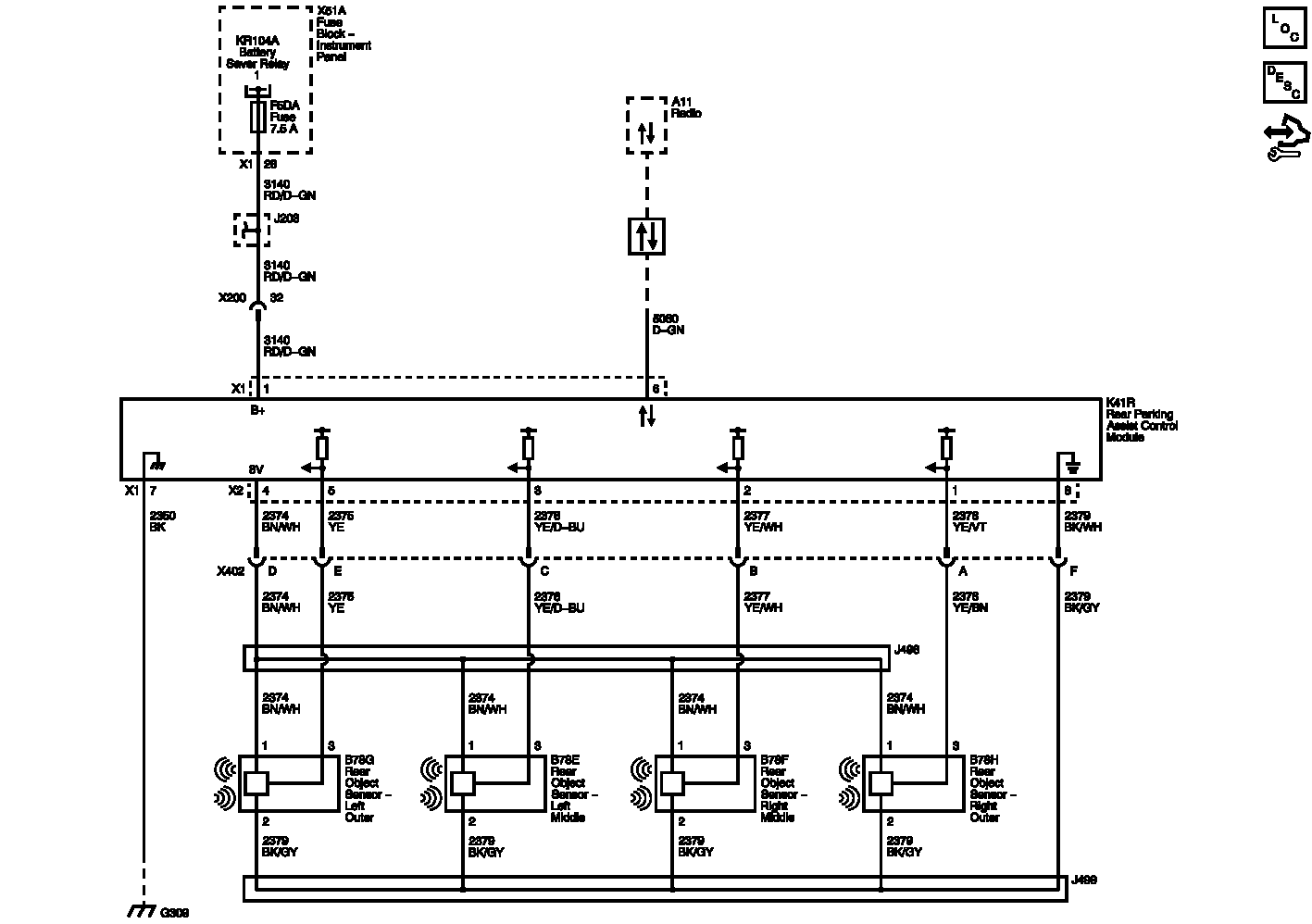

Home >> Chevrolet >> 2012 >> Orlando LS, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Object Detection System - Park Assist System >> Schematic Wiring Diagrams >> Object Detection Wiring Schematics >> UD7 Wiring Schematics
