Installation Procedure

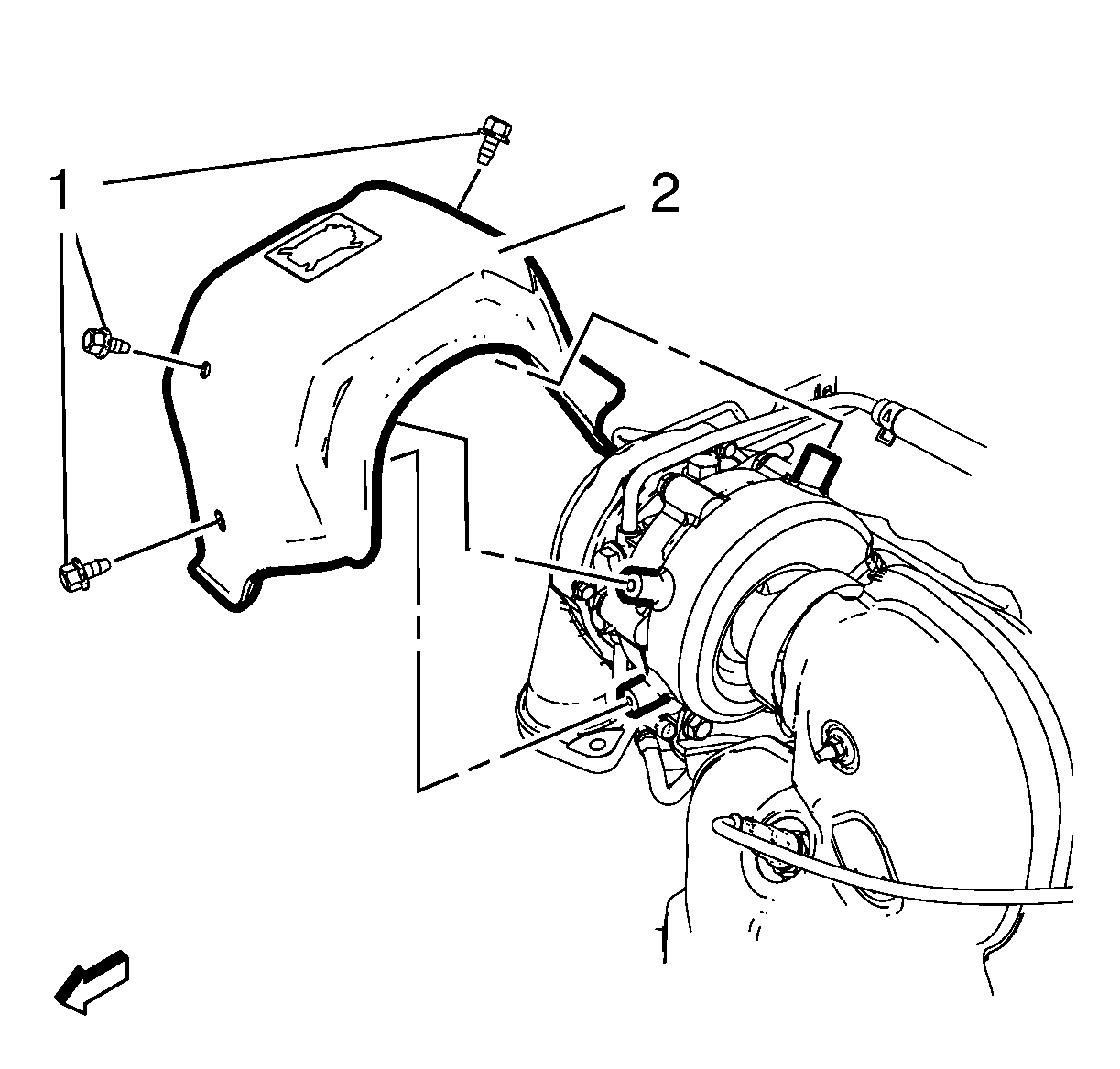

    Fig 1: Turbocharger Heat Shield Retaining Bolts
    GM2373120Courtesy of GENERAL MOTORS COMPANY
  1. Install the turbocharger heat shield (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 3 turbocharger heat shield retaining bolts (1), tighten to 10 N.m (89 lb in).
  3. Install the engine sight shield. Refer to the appropriate article.
