Automatic Transmission Components (MH7 or MH8)

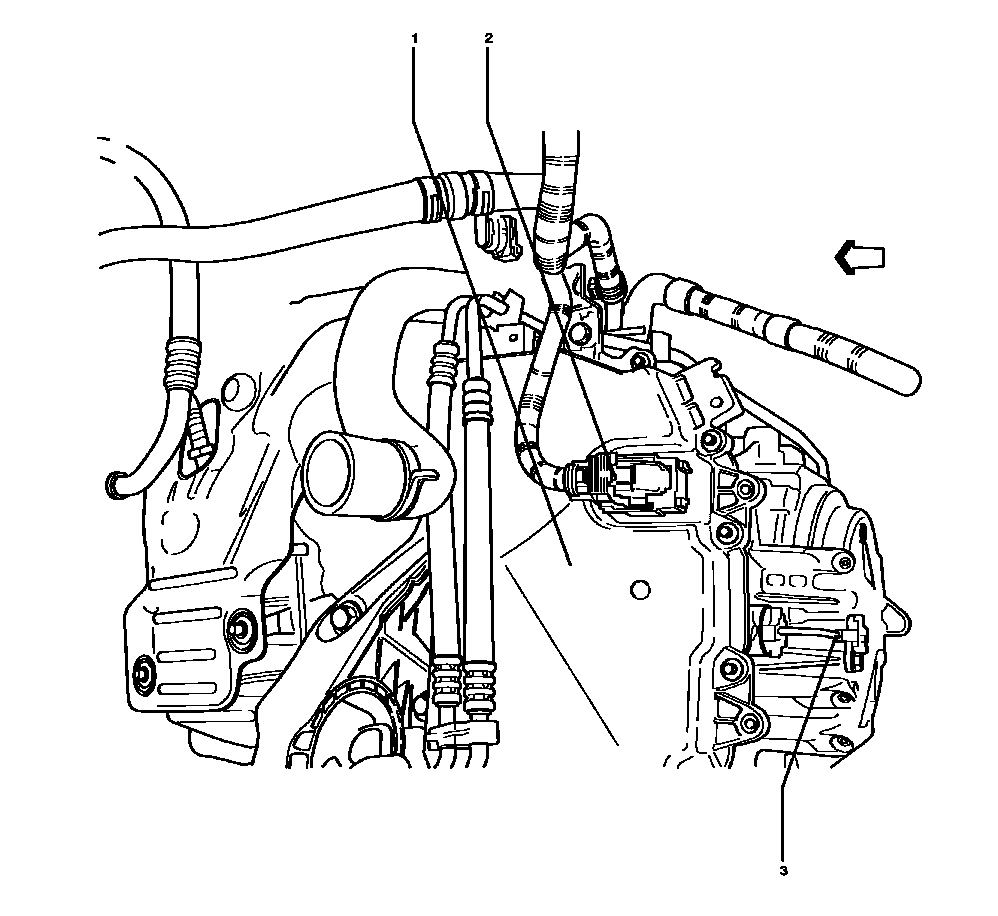

Fig 1: Identifying Transmission Components (MH8)
GM2290668Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 K71 Transmission Control Module
2 K71 Transmission Control Module X1
3 T12 Automatic Transmission Assembly
