Installation Procedure

  1. Install the battery with the GE-49379  remover.
    2. Fig 1: Protector Battery Tray
    GM2027650Courtesy of GENERAL MOTORS COMPANY
  2. Install the protector battery tray (1).
    3. Fig 2: Battery Current Sensor And Glow Plug Controller BracketT
    GM2027662Courtesy of GENERAL MOTORS COMPANY
  3. Install the glow plug controller bracket (2) at the battery tray.
  4. Connect the glow plug controller wiring harness plug (4).
  5. Clip in the battery current sensor (3) at the battery tray.

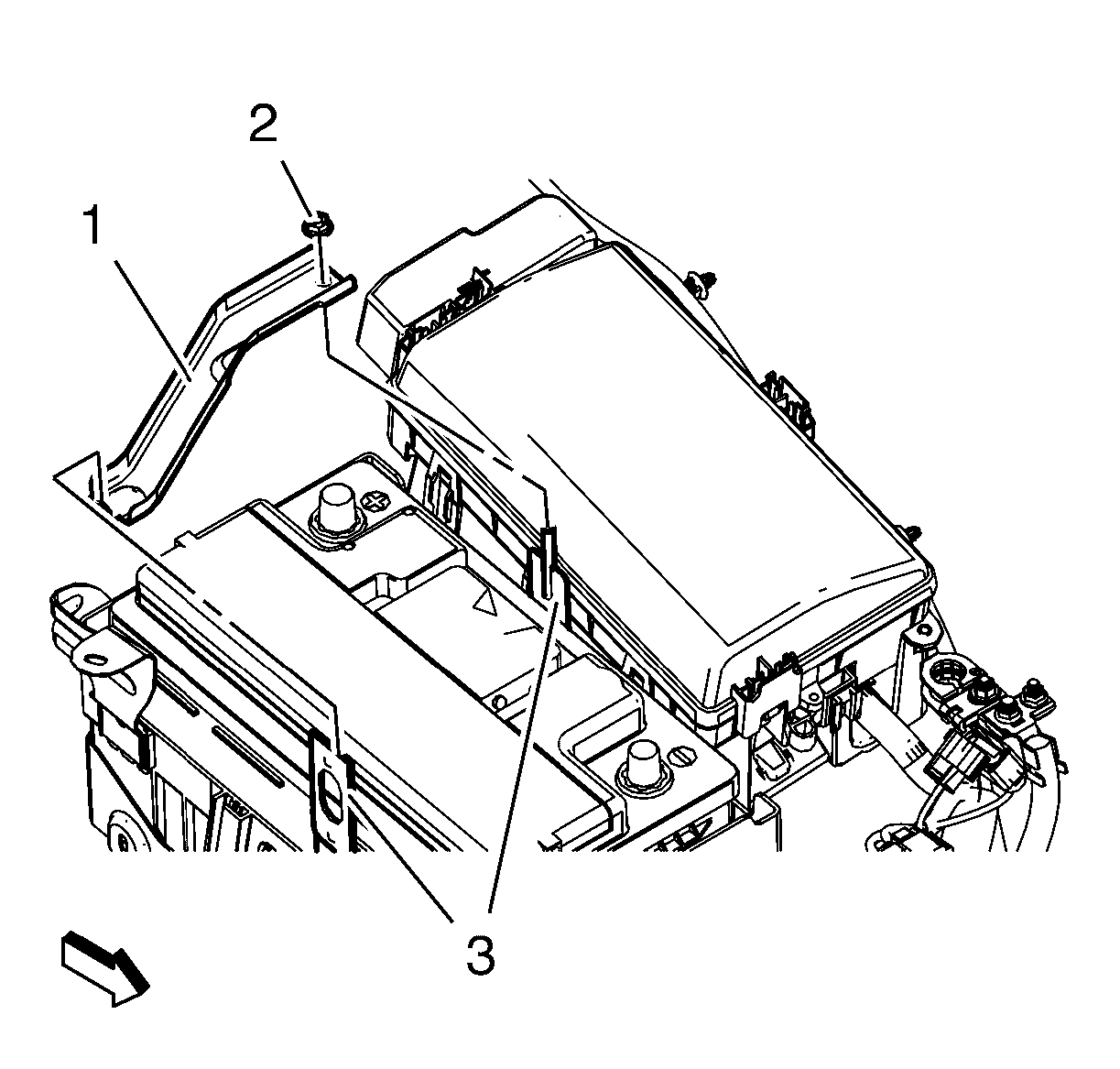

    6. Fig 3: Battery Hold Down
    GM2027610Courtesy of GENERAL MOTORS COMPANY
  6. Install the battery hold down retainer (1) at the battery tray (3).
    7. CAUTION:

    Refer to Fastener Caution.

  7. Install the battery hold down retainer nut (2) and tighten to 9 N.m (80 lb in).

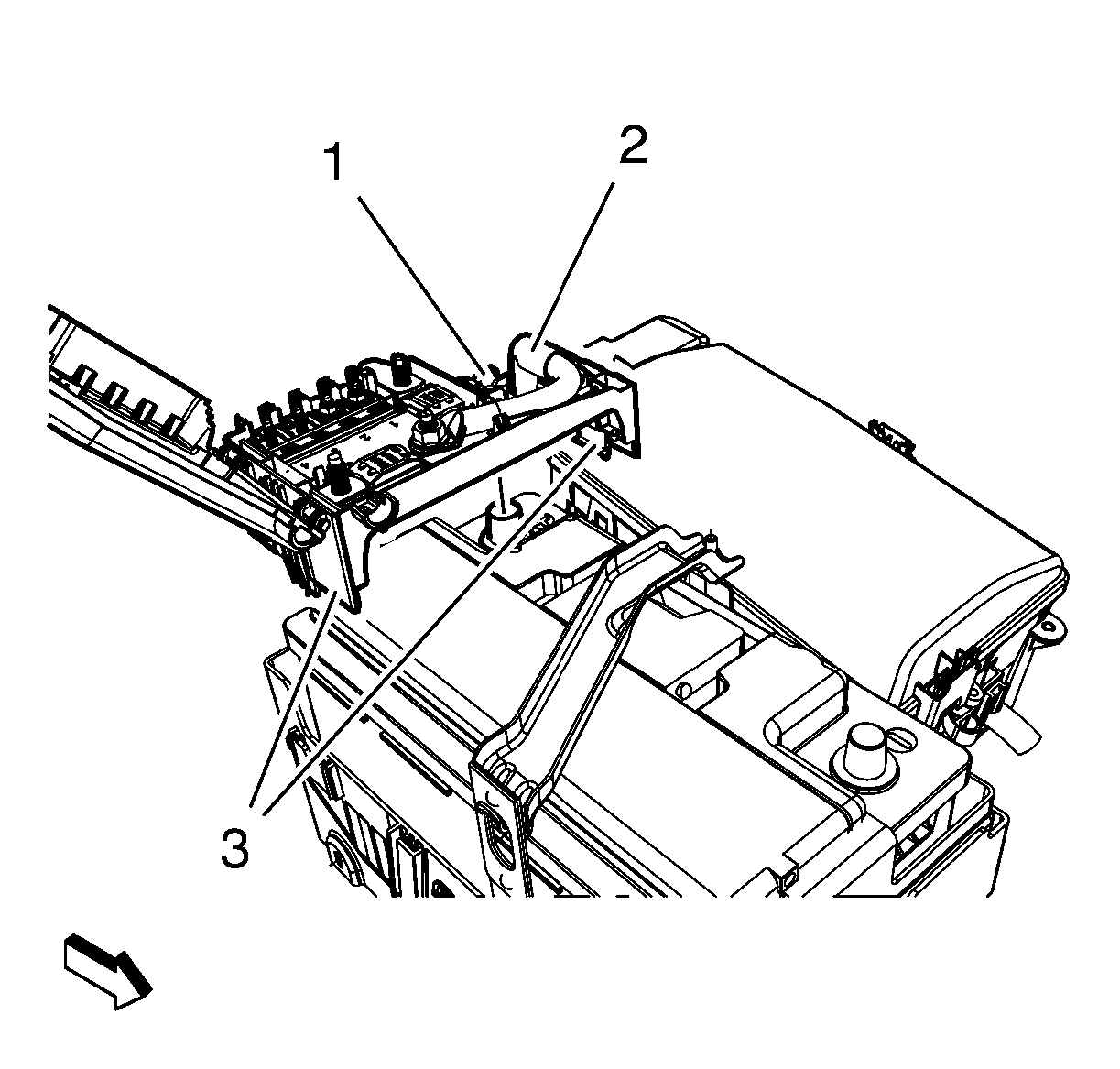

    8. Fig 4: Positive Battery Cable And Nut
    GM2027592Courtesy of GENERAL MOTORS COMPANY
  8. Install the positive battery cable cover and lock the 2 retaining tabs (3).
  9. Install the positive battery cable (2).
  10. Tighten the positive battery cable nut (1) on the battery to 9 N.m (80 lb in).
    11. Fig 5: Fuse Box Cover, Battery Cable And Nut
    GM2027594Courtesy of GENERAL MOTORS COMPANY
  11. Install the positive battery cable to starter (3).
  12. Install the positive battery cable to starter nut (2) and tighten to 9 N.m (80 lb in).
    13. Fig 6: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  13. Close the battery fuse box cover and lock the retaining tabs (1) and (4).
  14. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) .
